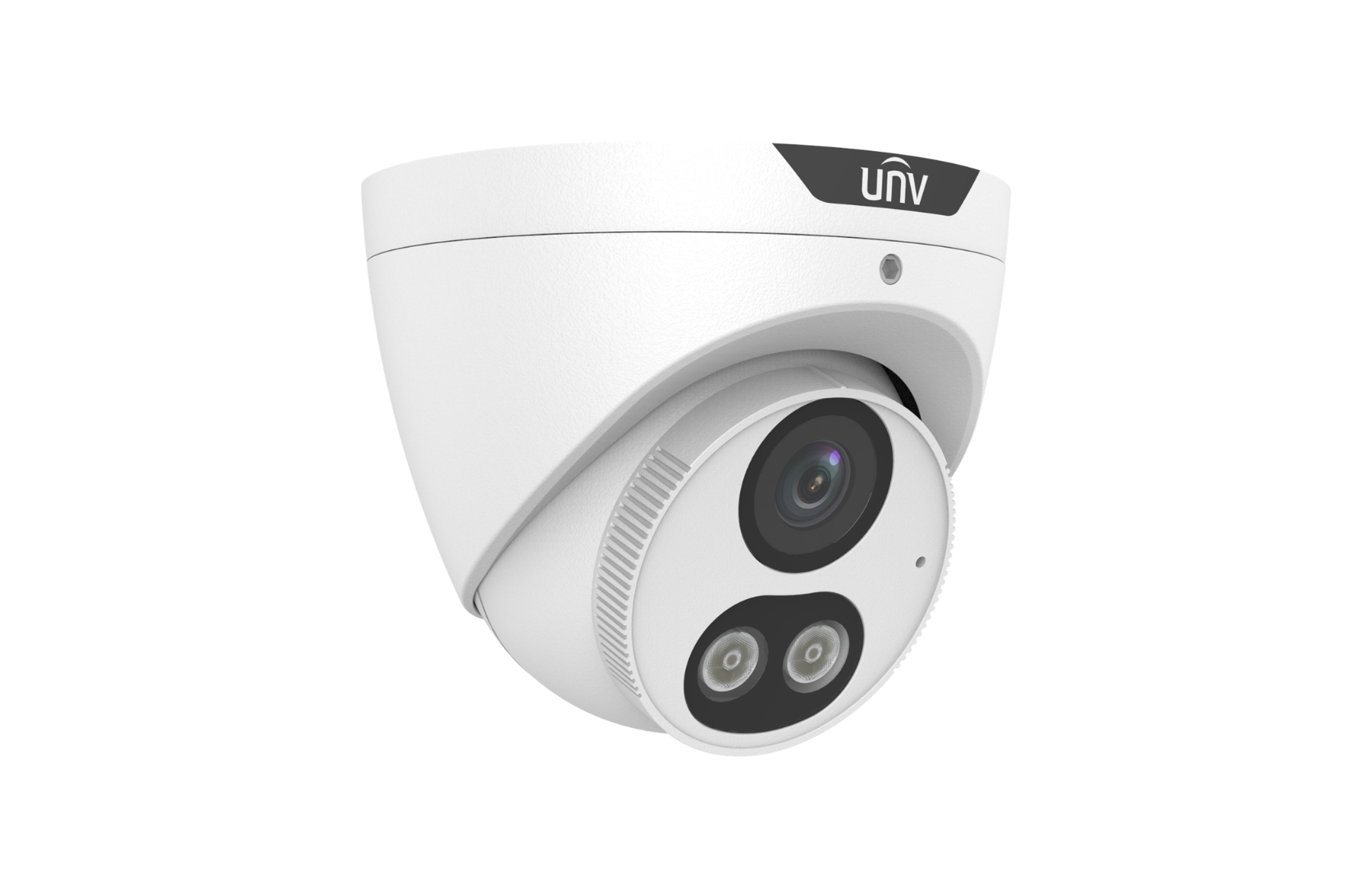

UNV IPC3616LE-ADF28KM-DL 6MP Dual Light Eyeball Network Camera (2.8mm)

Key Features

• 6MP (3200 × 1800) Network Eyeball Camera
• 1/2.4" CMOS image sensor
• Dual Light technology with IR and Warm Light
• Built-in microphone for audio recording
• Ultra 265, H.265, H.264 and MJPEG compression
• Human and vehicle based Ultra Motion Detection
• Human-based Cross Line and Intrusion Detection
• Supports MicroSD card up to 512GB
• IP67 weatherproof rating
• PoE (IEEE 802.3af) support
• 3-axis adjustment for flexible installation
• Datasheet

Camera

Resolution: 6MP (3200 × 1800)
Sensor: 1/2.4" CMOS
Minimum Illumination: 0.003 Lux (Colour, F1.6, AGC On)
WDR: 120dB True WDR
Shutter Speed: 1 ~ 1/100000s
S/N Ratio: >52dB

Lens

Lens Type: Fixed
Focal Length: 2.8mm
Aperture: F1.6
Iris Type: Fixed

Field of View

Horizontal FOV: 102.73°
Vertical FOV: 53.95°
Diagonal FOV: 106.97°

DORI Performance

Detect: 63.1m
Observe: 25.2m
Recognise: 12.6m
Identify: 6.3m

Lighting

Supplement Light Type: Dual Light (IR + Warm Light)
IR Distance: Up to 30m
Warm Light Distance: Up to 30m
IR Wavelength: 850nm
Smart IR: Supported
Smart Illumination: Supported

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG
Maximum Resolution: 6MP @ 25fps
4MP Resolution: Up to 30fps
1080P Resolution: Up to 30fps
Video Bit Rate: 128Kbps to 16Mbps
Video Streams: Dual Stream
U-Code: Supported
ROI: Supported

Audio

Built-in Microphone: Yes
Audio Compression: G.711U, G.711A
Audio Bit Rate: 64Kbps
Audio Detection: Supported
Two-Way Audio: No

AI Analytics

Ultra Motion Detection (Human & Vehicle Classification)
Cross Line Detection (Human Based)
Intrusion Detection (Human Based)
Motion Detection
Tampering Alarm
Audio Detection

Network & Storage

Network Port: 1 × RJ45 10/100Mbps Ethernet
Edge Storage: MicroSD up to 512GB
Network Storage: ANR, NAS (NFS)
ONVIF Support: Profile S, G, T
Maximum Users: 32
Supported Clients: UNV-Link, UNV-Link Pro, EZStation

Image Features

120dB WDR
2D/3D DNR
HLC
BLC
Digital Defog
Privacy Mask (Up to 4 Areas)
OSD (Up to 4)
Image Flip Modes Supported

Power

Power Supply: 12V DC ±25% or PoE (802.3af)
Maximum Power Consumption: 5.1W

Build

Camera Type: Eyeball / Turret
Dimensions: Ø110.5 × 98.0mm
Weight: 0.46kg
Construction: Metal + Plastic
3-Axis Adjustment: Supported

Protection

IP Rating: IP67
Surge Protection: 4KV
Reset Button: Yes

Certifications

CE-EMC
CE-LVD
CE-RoHS
WEEE

Operating Conditions

Operating Temperature: -30°C to 60°C
Operating Humidity: Up to 95% RH (Non-Condensing)
Storage Temperature: -30°C to 60°C
Storage Humidity: Up to 95% RH (Non-Condensing)
