Description

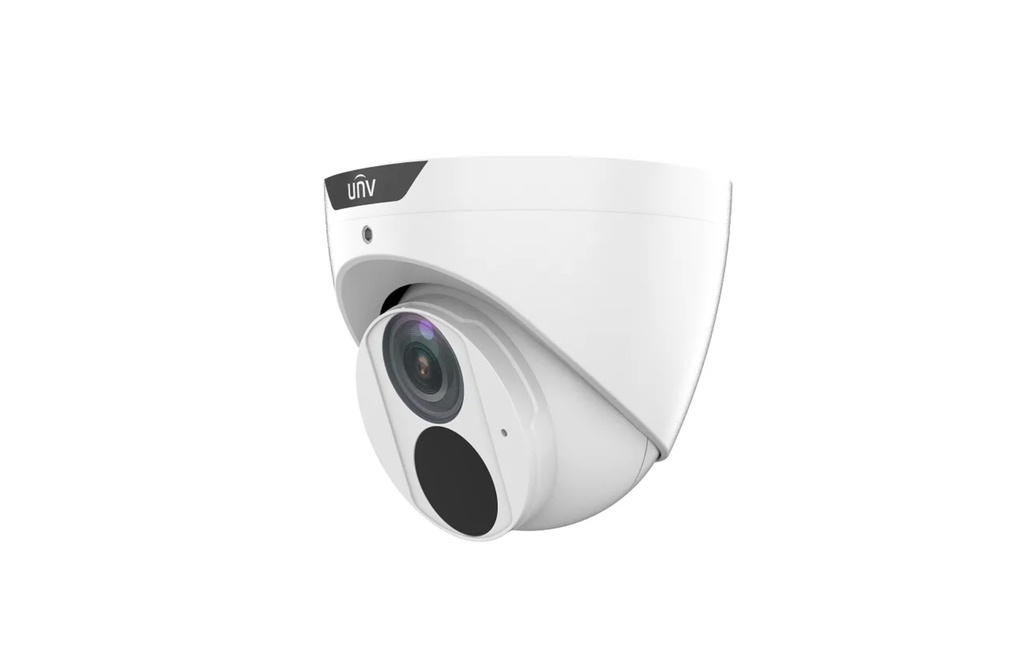

6MP fixed eyeball network camera featuring Easystar low-light technology, 120dB WDR, built-in microphone, and up to 30m IR illumination.
Suitable for commercial buildings, retail, offices, and outdoor installations requiring IP67 weather protection.
Key Features
• 6MP (3072 × 2048) up to 25fps
• 1/2.7" progressive scan CMOS sensor
• 2.8mm fixed lens (F1.6)
• Easystar low-light technology
• 120dB true WDR
• Smart IR up to 30m
• Built-in microphone
• MicroSD support up to 256GB
• 9:16 corridor mode
• Motion detection (up to 4 areas)
• PoE (802.3af) supported
• IP67 rated
• 3-axis adjustment
Camera Specifications
Sensor: 1/2.7", 6MP progressive scan CMOS
Minimum Illumination (Easystar):
• Colour: 0.003 Lux (F1.6, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000s
WDR: 120 dB
S/N Ratio: >56 dB
Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 80°
• Rotate: 0° to 360°
Lens (ADF28 Model)
Focal Length: 2.8 mm
Iris: F1.6
Lens Type: Fixed
Field of View:
• Horizontal: 112.9°
• Vertical: 59.1°
• Diagonal: 121.2°
DORI Distance (2.8mm)
Detect: 63.0 m
Observe: 25.2 m
Recognize: 12.6 m
Identify: 6.3 m
Illumination
Type: IR
IR Distance: Up to 30 m
Wavelength: 850 nm
IR Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 6MP (3072 × 2048) up to 25fps
• 5.3MP (3072 × 1728) up to 30fps
• 5MP (2880 × 1620) up to 25fps
• 4MP (2560 × 1440) up to 25fps
• 3MP (2304 × 1296) up to 30fps
• 1080P (1920 × 1080) up to 30fps
Sub Stream:
• 720P / D1 / 640×360 / 2CIF / CIF up to 30fps
9:16 Corridor Mode: Supported
OSD: Up to 4 areas
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas
Image Functions
White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction: 2D / 3D DNR
Smart IR: Supported
Flip: Vertical / Horizontal / 180° / 90° rotation
HLC: Supported
BLC: Supported
Defog: Digital defog
Intelligent Functions
Behavior Detection:
• Cross line detection
• Intrusion detection (human body based)
• Motion detection
• Tampering alarm
• Audio detection
Audio
Built-in Microphone: Yes
Compression: G.711
Sampling Rate: 8 kHz
Audio Suppression: Supported
Storage
Edge Storage: MicroSD up to 256GB
Network Storage: ANR, NAS (NFS)
Network & Integration
Network Interface: 10/100M Base-TX Ethernet
Protocols: IPv4, TCP, UDP, RTSP, HTTPS, SNMP, SSL and others
ONVIF: Profile S, G, T
Supported Clients:
EZStation
EZView
EZLive
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 6W
Dimensions: Ø110.5 × 94.1 mm
Weight: 0.42 kg
Material: Metal
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Ingress Protection: IP67
Reset Button: N/A
