Description

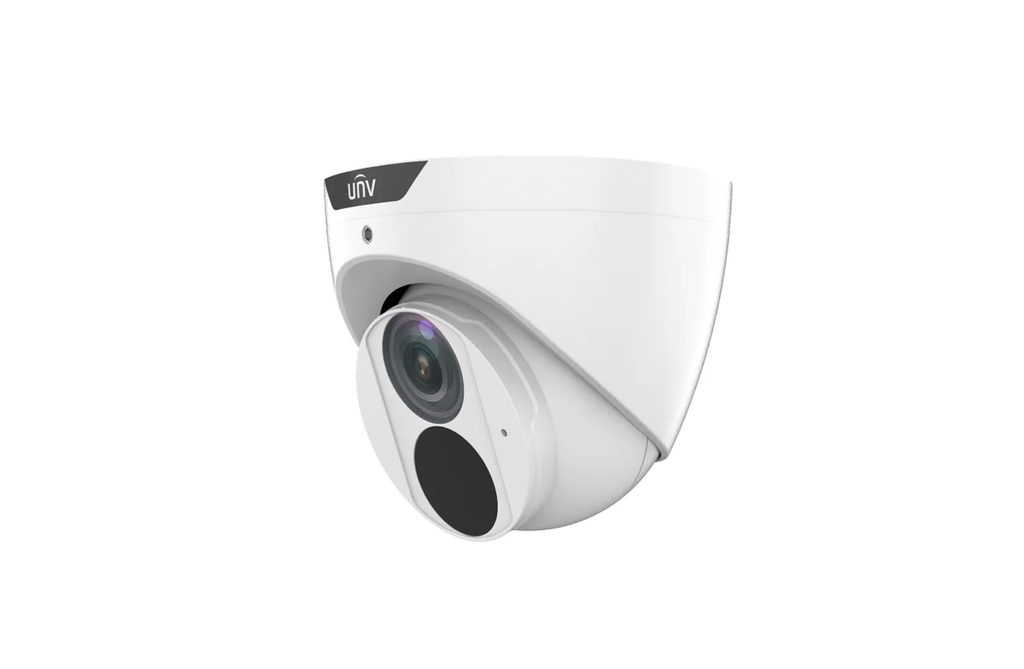

6MP intelligent fixed eyeball network camera featuring LightHunter low-light technology, smart intrusion prevention with false alarm filtering, face capture, and people counting.
Designed for retail, commercial buildings, entrances, and perimeter applications requiring advanced analytics and IP67 protection.
Key Features
• 6MP (3072 × 2048) up to 25fps
• 1/2.7" progressive scan CMOS sensor
• 2.8mm fixed lens (F1.6)
• LightHunter ultra-low light technology
• 120dB Optical WDR
• Smart intrusion prevention with classification
• Face capture with best snapshot selection
• People flow counting and crowd density monitoring
• Triple stream support
• Smart IR up to 30m
• Built-in microphone
• MicroSD support up to 256GB
• PoE (802.3af) supported
• IP67 rated
Camera Specifications
Sensor: 1/2.7", 6MP progressive scan CMOS
Minimum Illumination:
• Colour: 0.0025 Lux (F1.6, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000s
WDR: 120 dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 80°
• Rotate: 0° to 360°
Lens
Focal Length: 2.8 mm
Iris: F1.6
Lens Type: Fixed
Field of View:
• Horizontal: 101.34°
• Vertical: 54.46°
• Diagonal: 119.72°
DORI Distance (2.8mm)
Detect: 63 m
Observe: 25.2 m
Recognize: 12.6 m
Identify: 6.3 m
Illumination
Type: IR
IR Distance: Up to 30 m
Wavelength: 850 nm
IR Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 6MP up to 25fps
• 4MP up to 30fps
• 3MP up to 30fps
• 1080P up to 30fps
• 720P up to 30fps
Sub Stream:
• 1080P / 720P / D1 / 640×360 / 2CIF / CIF up to 30fps
Third Stream:
• D1 / 640×360 / 2CIF / CIF up to 30fps
OSD: Up to 8 areas
Privacy Mask: Up to 4 areas per scene
ROI: Up to 8 areas
Intelligent Functions
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering (human, vehicle classification)
Face Capture:
• Automatic best snapshot selection
• Face detection masked area support
People Counting:
• People flow counting
• Crowd density monitoring
Image Functions
White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction: 2D / 3D DNR
Smart IR: Supported
Flip: Vertical / Horizontal / 180° / 90° rotation
Dewarping: Supported
HLC / BLC: Supported
Defog: Digital defog
Audio
Built-in Microphone: Yes
Compression: G.711U / G.711A
Bitrate: 64 Kbps
Sampling Rate: 8 kHz
Two-way Audio: Not supported
Storage
Edge Storage: MicroSD up to 256GB
Network Storage: ANR, NAS (NFS)
Network & Security
Network Interface: 1 × RJ45 10/100M
Protocols: IPv4, IPv6, TCP, UDP, RTSP, HTTPS, SNMP, SSH and others
ONVIF: Profile S, G, T
Users: Up to 32 users (2 levels)
Security:
Password protection
Strong password policy
HTTPS encryption
RTSP authentication
HTTP authentication
TLS 1.2
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 5W
Dimensions: Ø111 × 95 mm
Weight: 0.45 kg
Material: Metal
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Ingress Protection: IP67
Reset Button: N/A
