Description

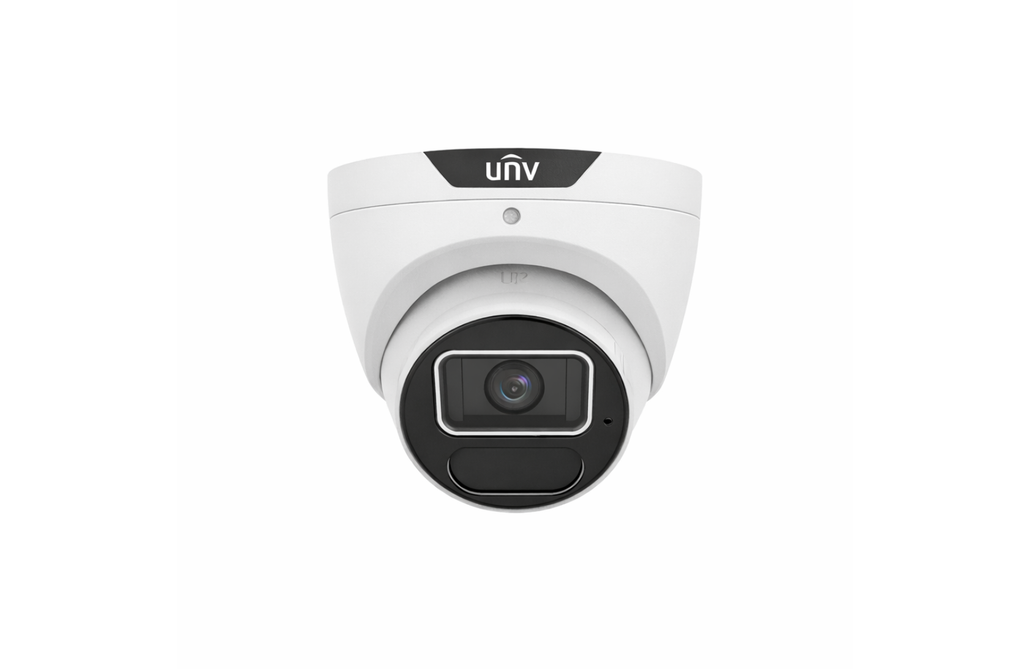

6MP intelligent fixed dome network camera featuring LightHunter low-light technology, 130dB WDR, face capture, people counting, and smart intrusion prevention.
Designed for retail, commercial buildings, entrances, and perimeter applications requiring advanced analytics and IP67 protection.
Key Features
• 6MP (3072 × 2048) up to 25fps
• 1/2.7" progressive scan CMOS sensor
• 2.8mm fixed lens (F1.6)
• LightHunter ultra-low light technology
• 130dB true WDR
• Face capture with best snapshot selection
• Smart intrusion prevention with false alarm filtering
• People flow counting and crowd density monitoring
• SIP color retrieval (recorder dependent)
• Auto Scene Match (ASM, WDR only)
• Smart IR up to 40m
• Built-in microphone
• MicroSD support up to 256GB
• PoE (802.3af) supported
• IP67 rated
Camera Specifications
Sensor: 1/2.7", 6MP progressive scan CMOS
Minimum Illumination:
• Colour: 0.002 Lux (F1.6, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000s
WDR: 130 dB
S/N Ratio: >56 dB
Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 75°
• Rotate: 0° to 360°
Lens
Focal Length: 2.8 mm
Iris: F1.6
Lens Type: Fixed
Field of View:
• Horizontal: 107.2°
• Vertical: 56.39°
• Diagonal: 110.11°
DORI Distance (2.8mm)
Detect: 63.0 m
Observe: 25.2 m
Recognize: 12.6 m
Identify: 6.3 m
Illumination
Type: IR
IR Distance: Up to 40 m
Wavelength: 850 nm
IR Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 6MP up to 25fps
• 4MP up to 30fps
• 3MP up to 30fps
• 1080P up to 30fps
Sub Stream:
• 1080P / 720P / D1 / 640×360 / 2CIF / CIF up to 30fps
Third Stream:
• D1 / 640×360 / 2CIF / CIF up to 30fps
OSD: Up to 8 areas
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Image Functions
Auto Scene Match (ASM): Supported (WDR only)
White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction: 2D / 3D DNR
Smart IR: Supported
Flip: Vertical / Horizontal / 180° / 90° rotation
HLC / BLC: Supported
Defog: Digital defog
Intelligent Functions
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering (human and vehicle classification)
Face Capture:
• Best snapshot selection
• Masked area support
People Counting:
• People flow counting
• Crowd density monitoring
Color Retrieval:
• SIP color retrieval (requires compatible recorder)
Audio
Built-in Microphone: Yes
Compression: G.711U / G.711A
Bitrate: 64 Kbps
Sampling Rate: 8 kHz
Two-way Audio: Not supported
Storage
Edge Storage: MicroSD up to 256GB
Network Storage: ANR, NAS (NFS)
Network & Security
Network Interface: 1 × RJ45 10/100M
Protocols: IPv4, IPv6, TCP, UDP, RTSP, HTTPS, SNMP, SSH and others
ONVIF: Profile S, G, T
Users: Up to 32 users (3 levels)
Security:
Password protection
Strong password policy
HTTPS encryption
RTSP authentication
HTTP authentication
TLS 1.2
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 6.5W
Dimensions: Ø129 × 110 mm
Weight: 0.43 kg
Material: Metal + Plastic
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Ingress Protection: IP67
Reset Button: N/A
