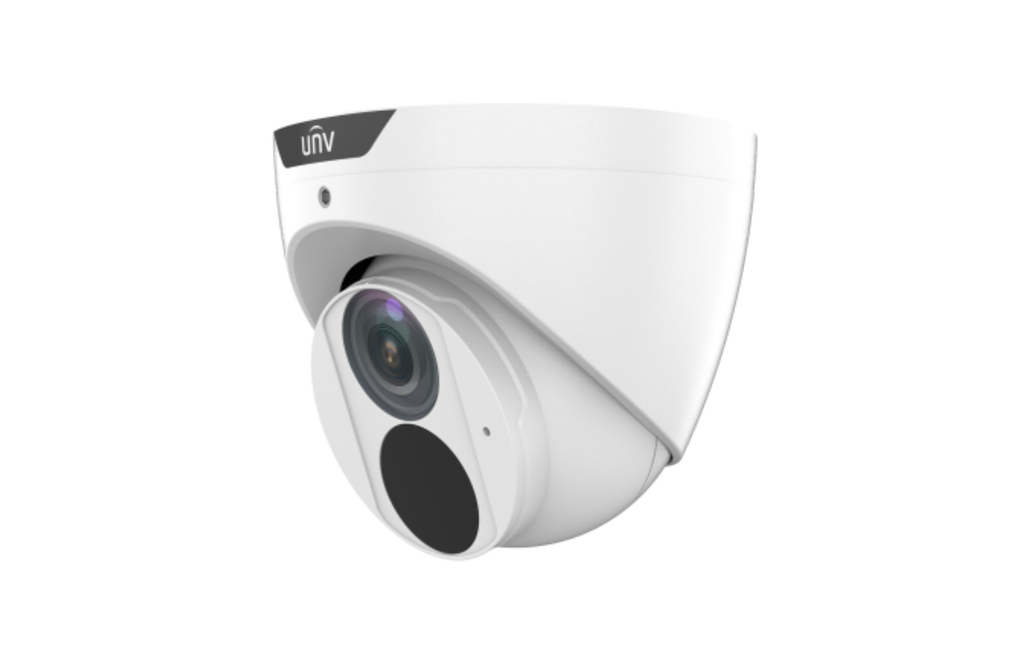

The IPC3618SB-ADF28KM-I0 is a professional-grade 8MP LightHunter turret camera designed for high-resolution surveillance with strong low-light performance. Featuring intelligent intrusion prevention and human/vehicle classification, it significantly reduces false alarms while delivering clear 4K imaging in both day and night conditions.
Ideal for residential, commercial, and perimeter security applications.
Datasheet
Key Features
• 8MP (3840 × 2160) resolution @ 20fps
• 1/2.7" CMOS sensor with excellent low-light sensitivity
• Ultra 265, H.265, H.264, MJPEG compression
• Intelligent perimeter protection (line crossing, intrusion, enter/leave area)
• Human, vehicle & non-motor vehicle classification
• 120dB True WDR for high contrast scenes
• Built-in microphone
• Smart IR with up to 30m night vision
• MicroSD support up to 512GB
• IP67 weatherproof metal housing
Camera Specifications
Sensor: 1/2.7" CMOS
Minimum Illumination:
• Color: 0.0025 Lux (F1.6, AGC ON)
• 0 Lux with IR on
Day/Night: IR-cut filter (ICR)
Shutter: 1 ~ 1/100000s
WDR: 120dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0°–360°
• Tilt: 0°–80°
• Rotate: 0°–360°
Lens
Focal Length: 2.8mm
Aperture: F1.6
Lens Type: Fixed
Field of View:
• Horizontal: 112.4°
• Vertical: 60.1°
• Diagonal: 146.1°
DORI Distance (2.8mm Lens)
• Detect: 84m
• Observe: 33.6m
• Recognize: 16.8m
• Identify: 8.4m
Video Performance
Main Stream:
• 8MP @ 20fps
• 5MP @ 30fps
• 4MP @ 30fps
• 1080P @ 30fps
Bitrate: 128 Kbps – 16 Mbps
Triple Streams Supported
ROI Supported
Up to 8 OSDs
Privacy Mask: Up to 4 areas
Intelligent Functions
• Cross Line Detection
• Intrusion Detection
• Enter/Leave Area Detection
• False Alarm Filtering
• People Flow Counting
• Crowd Density Monitoring
Image Enhancements
• Smart IR
• 2D/3D DNR
• BLC / HLC
• Digital Defog
• 9:16 Corridor Mode
• Dewarping Support
Audio
• Built-in Microphone
• G.711U / G.711A
• 64 Kbps
Storage
• MicroSD up to 512GB
• ANR (Automatic Network Replenishment)
• NAS (NFS)
Network & Security
• 10/100 Mbps RJ45 Ethernet
• ONVIF (Profile S, G, T, M)
• HTTPS Encryption
• TLS 1.2
• RTSP Authentication
• Up to 32 Users
Compatible with EZStation and mobile app.
Power & Physical
Power: DC 12V ±25% / PoE (802.3af)
Max Consumption: 6W
Material: Metal
Dimensions: Ø111mm × 95mm
Weight: 0.41kg
Operating Temperature:
-30°C to 60°C
Protection Rating: IP67
Surge Protection: 4KV
