Description

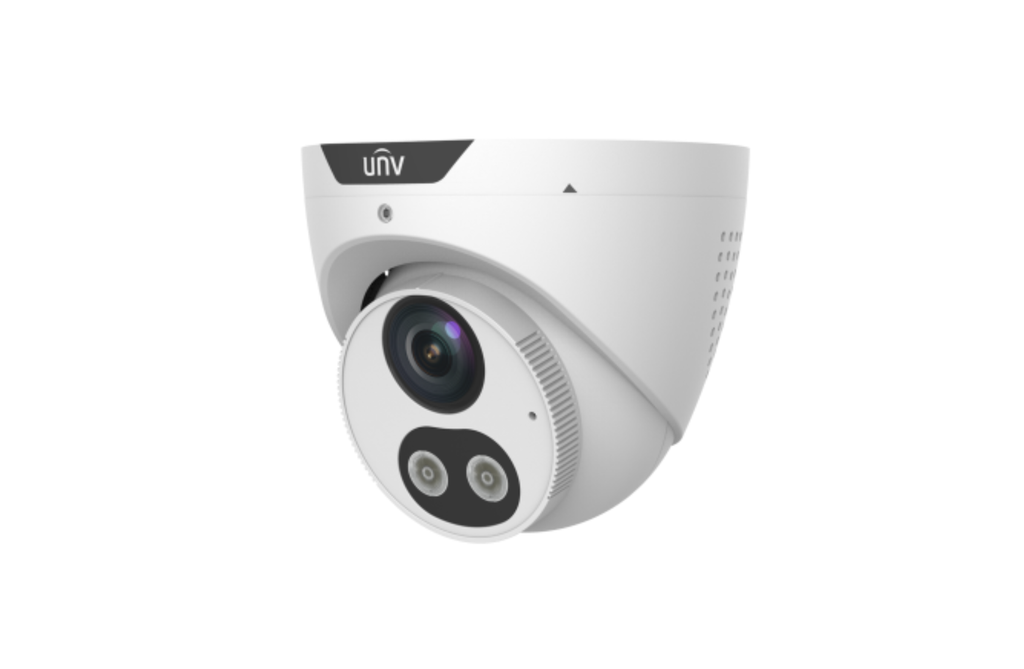

8MP intelligent turret network camera featuring Tri-Guard dual-light technology, active sound and light deterrence, smart intrusion prevention, and people counting.
Designed for perimeter protection, retail entrances, warehouses, commercial buildings, and active deterrence applications requiring visual warning and audio alert.
Key Features
• 8MP (3840 × 2160) up to 20fps
• 1/2.8" CMOS sensor
• 2.8mm fixed lens (F1.6)
• Dual-light (IR + warm light) up to 30m
• Active sound and light alarm linkage
• Smart intrusion prevention with false alarm filtering
• Face capture with best snapshot selection
• People flow counting and crowd density monitoring
• Built-in microphone and speaker
• 120dB true WDR
• 9:16 corridor mode
• MicroSD support up to 512GB
• IP67 rated
Camera Specifications
Sensor: 1/2.8" CMOS
Minimum Illumination:
• Colour: 0.0025 Lux (F1.6, AGC ON)
• 0 Lux with light
Day/Night: IR-cut filter with auto switch
Shutter: 1 ~ 1/100000s
WDR: 120 dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0° to 360°
• Tilt: 0° to 80°
• Rotate: 0° to 360°
Lens
Focal Length: 2.8 mm
Iris: F1.6
Lens Type: Fixed
Field of View:
• Horizontal: 101.0°
• Vertical: 56.3°
• Diagonal: 115.5°
DORI Distance (2.8mm)
Detect: 86.9 m
Observe: 34.8 m
Recognize: 17.4 m
Identify: 8.7 m
Illumination
Type: Dual Light (IR + Warm Light)
IR Distance: Up to 30 m
Warm Light Distance: Up to 30 m
Wavelength: 850 nm
Light Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Main Stream:
• 8MP up to 20fps
• 5MP up to 30fps
• 4MP up to 30fps
• 1080P up to 30fps
Sub Stream:
• 1080P / 720P / D1 / 640×360 / 2CIF / CIF up to 30fps
Third Stream:
• D1 / 640×360 / 2CIF / CIF up to 30fps
OSD: Up to 8 areas
Privacy Mask: Up to 4 areas
ROI: Supported
Image Functions
White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto2
Digital Noise Reduction: 2D / 3D DNR
Smart IR: Supported
Flip: Vertical / Horizontal / 180° / 90° rotation
Dewarping: Supported
HLC / BLC: Supported
Defog: Digital defog
Intelligent Functions
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering (human / vehicle / non-motor vehicle classification)
Active Deterrence:
• Sound alarm
• Light warning
• Automatic linkage when intrusion is triggered
Face Capture:
• Automatic best snapshot selection
• Masked area support
People Counting:
• People flow counting
• Crowd density monitoring
Audio
Built-in Microphone: Yes
Built-in Speaker: Yes
Compression: G.711U / G.711A
Bitrate: 64 Kbps
Two-way Audio: Supported
Storage
Edge Storage: MicroSD up to 512GB
Network Storage: ANR, NAS (NFS)
Network & Security
Network Interface: 1 × RJ45 10/100M
Protocols: IPv4, IPv6, TCP, UDP, RTSP, HTTPS, SNMP, SSL/TLS and others
ONVIF: Profile S, G, T, M
Users: Up to 32 users (3 levels)
Security:
Password protection
Strong password policy
HTTPS encryption
RTSP authentication
TLS 1.2
Operation log export
General
Power Supply: DC 12V ±25% or PoE (802.3af)
Max Power Consumption: 8W
Dimensions: Ø111 × 95 mm
Weight: 0.45 kg
Material: Metal + Plastic
Operating Temperature: -30°C to 60°C
Humidity: ≤95% RH (non-condensing)
Surge Protection: 4KV
Ingress Protection: IP67
Reset Button: N/A
