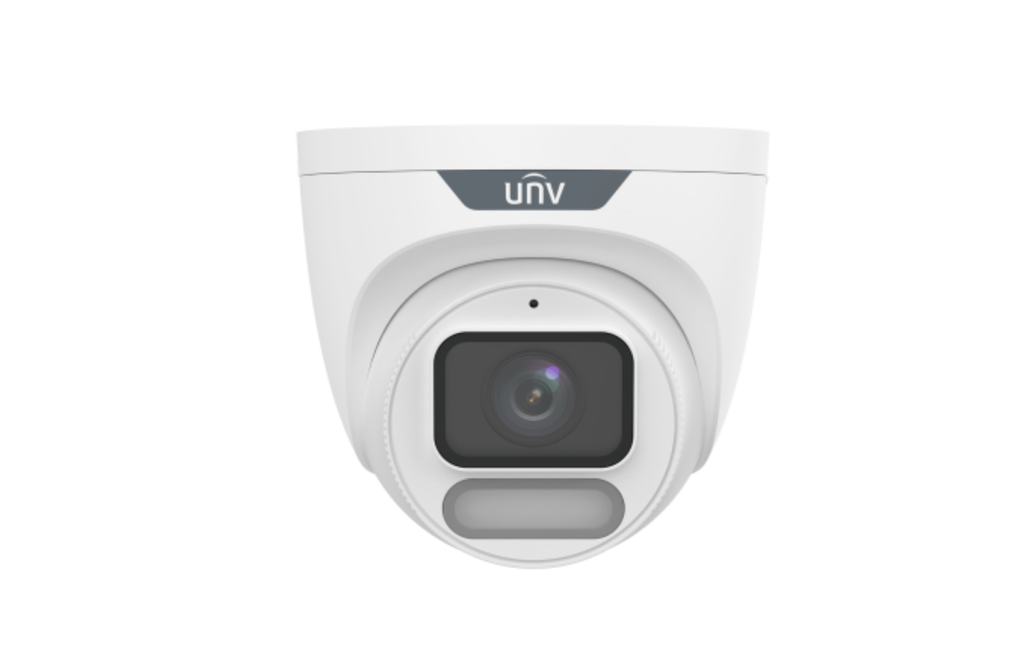

The IPC3624LE-ADF28K-WP is a 4MP ColorHunter turret camera featuring a large 1/1.8" CMOS sensor and F1.0 ultra-large aperture lens. Designed for full-colour imaging in extremely low-light environments, it combines ColorHunter technology with Wise-ISP processing to deliver superior colour accuracy, detail retention, and reduced smearing at night.
Ideal for shopfronts, residential driveways, car parks, and low-light perimeter areas.
Datasheet
Key Features
• 4MP (2688 × 1520) resolution
• 1/1.8" CMOS sensor with F1.0 large aperture
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP low-light optimisation
• 120dB True WDR
• Built-in microphone
• Warm white light up to 30m
• MicroSD up to 512GB
• IP67 weatherproof
• PoE supported
• 3-axis adjustment
Camera Specifications
Max Resolution: 4MP
Sensor: 1/1.8" CMOS
Minimum Illumination:
• Color: 0.0003 Lux (F1.0, AGC ON)
Shutter: 1 ~ 1/100000s
WDR: 120dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0°–360°
• Tilt: 0°–75°
• Rotate: 0°–360°
Lens
Focal Length: 2.8mm
Iris: F1.0 (Fixed)
Field of View:
• Horizontal: 124.3°
• Vertical: 61.4°
• Diagonal: 135°
DORI Distance (2.8mm Lens)
• Detect: 43.4m
• Observe: 17.4m
• Recognize: 8.7m
• Identify: 4.3m
Video Performance
Main Stream:
• 4MP (2688 × 1520) @ 25fps
• 4MP (2560 × 1440) @ 25fps
• 3MP @ 30fps
• 1080P @ 30fps
Sub Stream:
• 720P @ 30fps
• D1 / 640×360 @ 30fps
Bitrate: 128 Kbps – 6144 Kbps
Dual Streams Supported
ROI Supported
Up to 4 OSDs
Privacy Mask: Up to 4 areas
Intelligent Functions
Smart Intrusion Prevention (Lite):
• Cross line detection
• Intrusion detection
• Human & vehicle classification
Image Enhancement
• Smart Illumination
• 2D/3D DNR
• BLC / HLC
• Digital Defog
• 9:16 Corridor Mode
Audio
• Built-in Microphone
• G.711U / G.711A
• 64 Kbps
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Integration
• 10/100 Mbps RJ45
• ONVIF (Profile S, G, T)
• HTTPS Encryption
• TLS 1.2
• Up to 32 users
Compatible with EZStation and mobile app.
Power & Physical
Power: DC 12V ±25% / PoE (802.3af)
Max Consumption: 2.8W
Material: Metal + Plastic
Dimensions: Ø118mm × 106mm
Weight: 0.48kg
Operating Temperature: -30°C to 60°C
Protection: IP67
Surge Protection: 4KV
Reset Button: Supported
