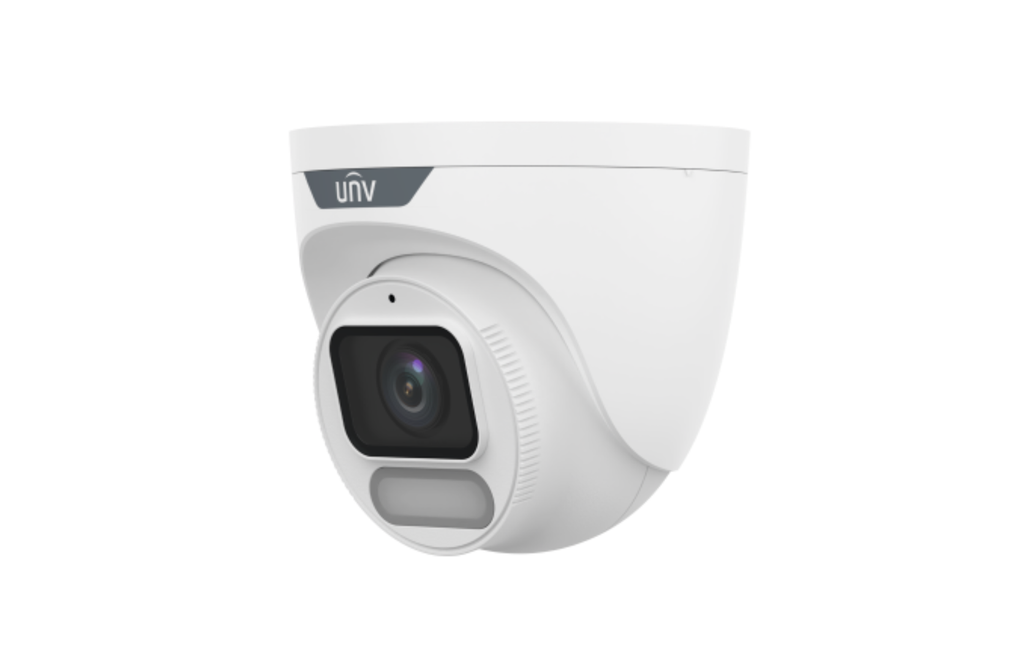

The IPC3626LE-ADF28K-WP is a 6MP ColorHunter eyeball (turret) camera featuring a large 1/1.8" CMOS sensor and ultra-wide F1.0 aperture lens. Designed for full-colour surveillance in extremely low-light environments, it combines ColorHunter imaging with Wise-ISP processing to deliver exceptional colour accuracy, enhanced detail, and reduced motion smear at night.
Ideal for premium residential, shopfront, driveway, and commercial perimeter installations where colour clarity at night is critical.
Datasheet
Key Features
• 6MP (3072 × 2048) high-resolution imaging
• 1/1.8" CMOS sensor with F1.0 large aperture
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP ultra low-light optimisation
• 120dB True WDR
• Built-in microphone
• Warm white light up to 30m
• MicroSD support up to 512GB
• IP67 weatherproof
• PoE supported
• 3-axis adjustment
Camera Specifications
Max Resolution: 6MP
Sensor: 1/1.8" CMOS
Minimum Illumination:
• Colour: 0.0003 Lux (F1.0, AGC ON)
Shutter: 1 ~ 1/100000s
WDR: 120dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0°–360°
• Tilt: 0°–75°
• Rotate: 0°–360°
Lens
Focal Length: 2.8mm
Iris: F1.0 (Fixed)
Field of View:
• Horizontal: 110.4°
• Vertical: 60.5°
• Diagonal: 115.2°
DORI Distance (2.8mm Lens)
• Detect: 43.4m
• Observe: 17.4m
• Recognize: 8.7m
• Identify: 4.3m
Video Performance
Main Stream:
• 6MP (3072 × 2048) @ 25fps
• 4MP (2688 × 1520) @ 25fps
• 4MP (2560 × 1440) @ 25fps
• 3MP @ 30fps
• 1080P @ 30fps
Sub Stream:
• 720P @ 30fps
• D1 / 640×360 @ 30fps
Bitrate: 128 Kbps – 6144 Kbps
Dual Streams Supported
ROI: Up to 8 areas
OSD: Up to 4
Privacy Mask: Up to 4 areas
Intelligent & Event Features
• Motion Detection
• Ultra Motion Detection
• Tampering Alarm
• Audio Detection
• Cross Line Detection (Human Body Based)
• Intrusion Detection (Human Body Based)
Image Enhancement
• Smart Illumination
• 2D/3D DNR
• BLC / HLC
• Digital Defog
• Flip (Vertical/Horizontal/180°)
Audio
• Built-in Microphone
• G.711U / G.711A
• 64 Kbps
• 8kHz sampling
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Integration
• 10/100 Mbps RJ45
• ONVIF (Profile S, G, T)
• HTTPS Encryption
• TLS 1.2
• Up to 32 users (2 user levels)
Compatible with UNV-Link, UNV-Link Pro and EZStation.
Power & Physical
Power: DC 12V ±25% / PoE (802.3af)
Max Consumption: 2.8W
Material: Metal + Plastic
Dimensions: Ø118mm × 106mm
Weight: 0.48kg
Operating Temperature: -30°C to 60°C
Protection: IP67
Surge Protection: 4KV
Reset Button: Supported
