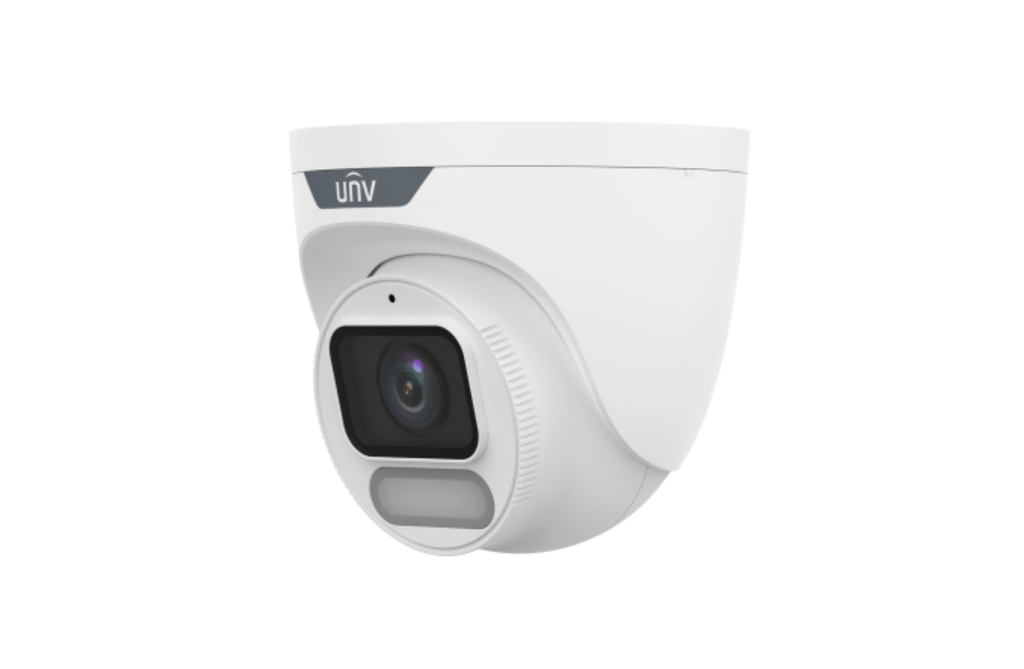

The IPC3628LE-ADF28K-WP is an 8MP ColorHunter turret camera engineered for 24-hour full-colour surveillance. Equipped with a large 1/1.8" CMOS sensor and F1.0 ultra-large aperture lens, it delivers exceptional colour clarity and detail even in extremely low-light environments.
With Wise-ISP image optimisation and built-in warm white light, this model is ideal for high-end residential, retail, driveway, and perimeter installations requiring premium 4K colour imaging at night.
Datasheet
Key Features
• 8MP (3840 × 2160) ultra-high resolution
• 1/1.8" CMOS sensor with F1.0 large aperture
• Ultra 265, H.265, H.264, MJPEG
• ColorHunter with Wise-ISP for 24/7 full-colour imaging
• 120dB True WDR
• Built-in microphone
• Warm white light up to 30m
• MicroSD support up to 512GB
• IP67 weatherproof
• PoE supported
• 3-axis adjustment
Camera Specifications
Max Resolution: 8MP
Sensor: 1/1.8" CMOS
Minimum Illumination:
• Colour: 0.0003 Lux (F1.0, AGC ON)
Shutter: 1 ~ 1/100000s
WDR: 120dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0°–360°
• Tilt: 0°–90°
• Rotate: 0°–360°
Lens (2.8mm Version)
Focal Length: 2.8mm
Iris: F1.0 (Fixed)
Field of View:
• Horizontal: 111.0°
• Vertical: 63.0°
• Diagonal: 131.0°
DORI Distance (2.8mm)
• Detect: 63.0m
• Observe: 25.2m
• Recognize: 12.6m
• Identify: 6.3m
Video Performance
Main Stream:
• 8MP @ 20fps
• 5MP @ 30fps
• 4MP @ 30fps
• 1080P @ 30fps
• 720P @ 30fps
Sub Stream:
• 1080P @ 30fps
• 720P @ 30fps
• D1 / 640×360 @ 30fps
Bitrate: 128 Kbps – 6144 Kbps
Dual Streams Supported
ROI Supported
Up to 4 OSDs
Privacy Mask: Up to 4 areas
Intelligent Features
Smart Intrusion Prevention (Lite):
• Cross Line Detection
• Intrusion Detection
• Human & Vehicle Classification
Events:
• Motion Detection
• Ultra Motion Detection
• Tampering Alarm
• Audio Detection
Image Enhancement
• Smart Illumination
• 2D/3D DNR
• BLC / HLC
• Digital Defog
• 9:16 Corridor Mode
• Image Flip (Multiple orientations)
Audio
• Built-in Microphone
• G.711U / G.711A
• 64 Kbps
• 8kHz sampling
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Integration
• 10/100 Mbps RJ45
• ONVIF (Profile S, G, T)
• HTTPS Encryption
• TLS 1.2
• Up to 32 users (2 user levels)
Compatible with EZStation and mobile app.
Power & Physical
Power: DC 12V ±25% / PoE (IEEE 802.3af)
Max Consumption: 3.9W
Material: Metal + Plastic
Dimensions: Ø118mm × 106mm
Weight: 0.48kg
Operating Temperature: -30°C to 60°C
Protection: IP67
Surge Protection: 4KV
Reset Button: Supported
