Description

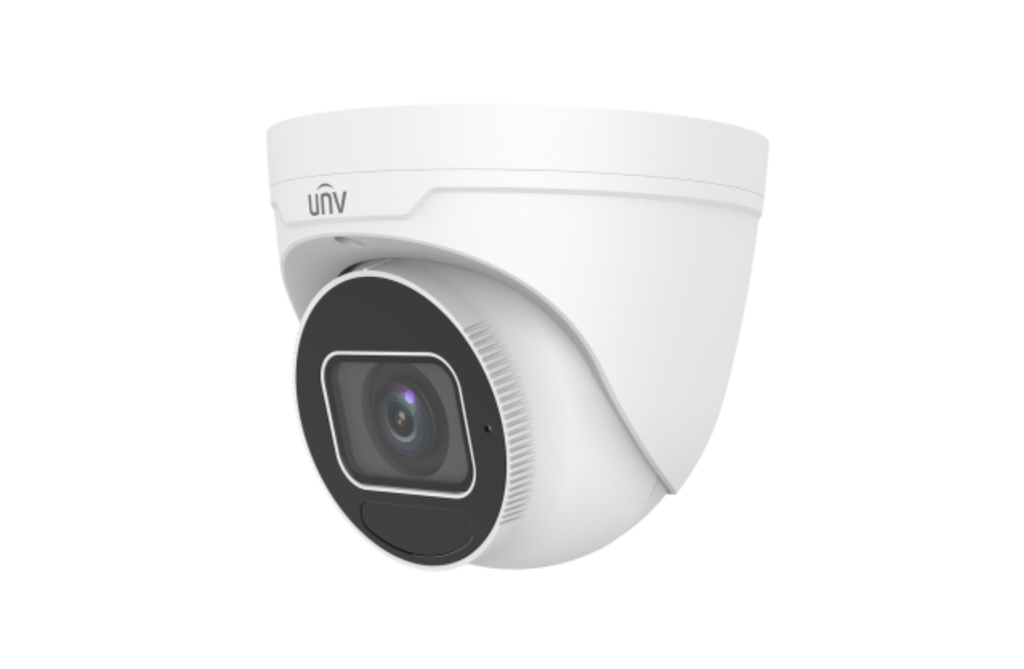

The IPC3635SB-ADZK-I0 is a professional-grade 5MP LightHunter turret camera featuring a motorized varifocal lens (2.7–13.5mm), advanced intelligent analytics, and IK10 vandal resistance.
Designed for demanding commercial and industrial installations, it delivers superior low-light performance, long-range IR coverage up to 40m, and highly accurate human/vehicle classification to reduce false alarms.
Ideal for warehouses, car parks, schools, shopping centres, and perimeter security.
Key Features
• 5MP (2880 × 1620) resolution @ 30fps
• 1/2.7" CMOS sensor
• Motorized 2.7–13.5mm varifocal lens
• LightHunter ultra-low-light technology
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection with target classification
• People flow counting & crowd density monitoring
• 120dB True WDR
• Built-in microphone
• Smart IR up to 40m
• MicroSD up to 512GB
• IP67 weatherproof
• IK10 vandal resistant
• Triple video streams
Camera Specifications
Max Resolution: 5MP
Sensor: 1/2.7" CMOS
Minimum Illumination:
• Colour: 0.002 Lux (F1.2, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter (ICR)
Shutter: 1 ~ 1/100000s
WDR: 120dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0°–360°
• Tilt: 0°–75°
• Rotate: 0°–360°
Lens
Focal Length: 2.7–13.5mm (Motorized Zoom)
Iris: F1.2
Lens Type: Motorized Varifocal
Field of View:
• Horizontal: 106.3° – 32.5°
• Vertical: 53.5° – 18.0°
• Diagonal: 126.0° – 38.5°
DORI Distance (2.7–13.5mm)
• Detect: 60.8m – 303.8m
• Observe: 24.3m – 121.5m
• Recognize: 12.2m – 60.8m
• Identify: 6.1m – 30.4m
This wide zoom range makes it ideal for both close detail and long-distance monitoring.
Video Performance
Main Stream:
• 5MP @ 30fps
• 4MP @ 30fps
• 3MP @ 30fps
• 1080P @ 30fps
• 720P @ 30fps
Sub Stream:
• 720P @ 30fps
• D1 / 640×360 @ 30fps
Third Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Triple Streams Supported
ROI Supported
Up to 8 OSDs
Privacy Mask: Up to 4 areas
Intelligent Analytics
Smart Intrusion Prevention:
• Cross Line Detection
• Intrusion Detection
• Enter Area Detection
• Leave Area Detection
• Human / Vehicle / Non-motor Vehicle Classification
People Counting:
• People flow counting
• Crowd density monitoring
Image Enhancement
• Smart IR
• 2D/3D DNR
• BLC / HLC
• Digital Defog
• 9:16 Corridor Mode
• Multiple image flip options
Audio
• Built-in Microphone
• G.711U / G.711A
• 64 Kbps
• 8kHz sampling
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Integration
• 10/100 Mbps RJ45
• ONVIF (Profile S, G, T, M)
• HTTPS Encryption
• TLS 1.2
• Up to 32 users (3 user levels)
Compatible with EZStation and mobile app.
Power & Physical
Power: DC 12V ±25% / PoE (IEEE 802.3af)
Max Consumption: 7.0W
Material: Metal
Dimensions: Ø129mm × 110mm
Weight: 0.70kg
Operating Temperature: -30°C to 60°C
Protection: IP67
Vandal Rating: IK10
Surge Protection: 6KV
Reset Button: Supported
