Description

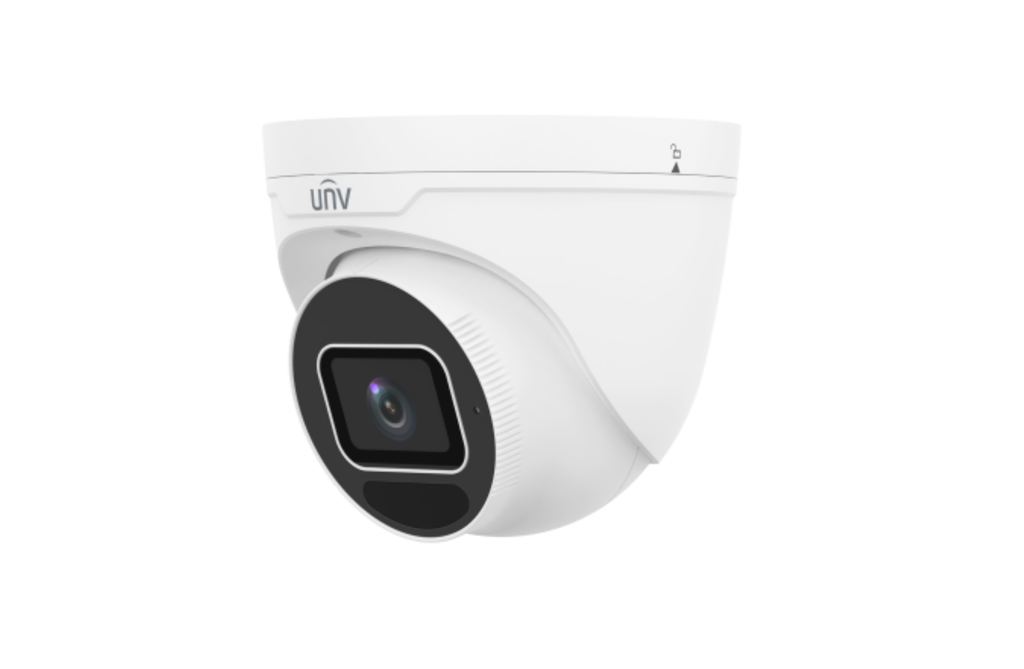

The IPC3638SB-ADZK-I0 is a professional 8MP LightHunter turret camera featuring a motorized 2.8–12mm varifocal lens, long-range IR illumination, and advanced intelligent analytics.
Designed for commercial, industrial, and perimeter installations, it delivers detailed 4K imaging with strong low-light performance, accurate human/vehicle classification, and robust IK10 vandal protection.
Key Features
• 8MP (3840 × 2160) @ 20fps
• 1/2.8" CMOS sensor
• Motorized 2.8–12mm varifocal lens
• LightHunter low-light enhancement
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection with false alarm filtering
• Human / vehicle / non-motor vehicle classification
• People flow counting & crowd density monitoring
• 120dB True WDR
• Built-in microphone
• Smart IR up to 40m
• MicroSD support up to 512GB
• IK10 vandal resistant
• IP67 weatherproof
• PoE supported
Camera Specifications
Max Resolution: 8MP
Sensor: 1/2.8" CMOS
Minimum Illumination:
• Colour: 0.0025 Lux (F1.6, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter (ICR)
Shutter: 1 ~ 1/100000s
WDR: 120dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0°–360°
• Tilt: 0°–75°
• Rotate: 0°–360°
Lens
Focal Length: 2.8–12mm (Motorized Zoom)
Iris: F1.6
Lens Type: Motorized Varifocal
Field of View:
• Horizontal: 107.4° – 29.2°
• Vertical: 54.2° – 16.3°
• Diagonal: 111.0° – 33.1°
DORI Distance (2.8–12mm)
• Detect: 86.9m – 372.4m
• Observe: 34.8m – 149.0m
• Recognize: 17.4m – 74.5m
• Identify: 8.7m – 37.2m
Suitable for both close monitoring and long-distance identification.
IR Illumination
• IR Distance: 40m
• Wavelength: 850nm
• Auto / Manual IR control
Video Performance
Main Stream:
• 8MP @ 20fps
• 5MP @ 30fps
• 4MP @ 30fps
• 1080P @ 30fps
Sub Stream:
• 1080P / 720P / D1 / 640×360 / CIF
Third Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Triple Streams Supported
ROI Supported
Up to 8 OSDs
Privacy Mask: Up to 4 areas
Intelligent Analytics
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering
• Human / Vehicle / Non-motor vehicle classification
People Counting:
• People flow counting
• Crowd density monitoring
Image Enhancement
• Smart IR
• 2D/3D DNR
• BLC / HLC
• Digital Defog
• Dewarping supported
• 9:16 Corridor Mode
• Multiple flip options
Audio
• Built-in Microphone
• G.711U / G.711A
• 64 Kbps
• 8kHz sampling
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Integration
• 10/100 Mbps RJ45
• ONVIF (Profile S, G, T, M)
• HTTPS Encryption
• TLS 1.2
• SSH Support
• Up to 32 users (3 levels)
Compatible with EZStation and mobile app.
Power & Physical
Power: DC 12V ±25% / PoE (IEEE 802.3af)
Max Consumption: 9.0W
Material: Metal
Dimensions: Ø129mm × 110mm
Weight: 0.69kg
Operating Temperature: -30°C to 60°C
Protection:
• IP67
• IK10
Surge Protection: 6KV
Reset Button: Supported
