Description

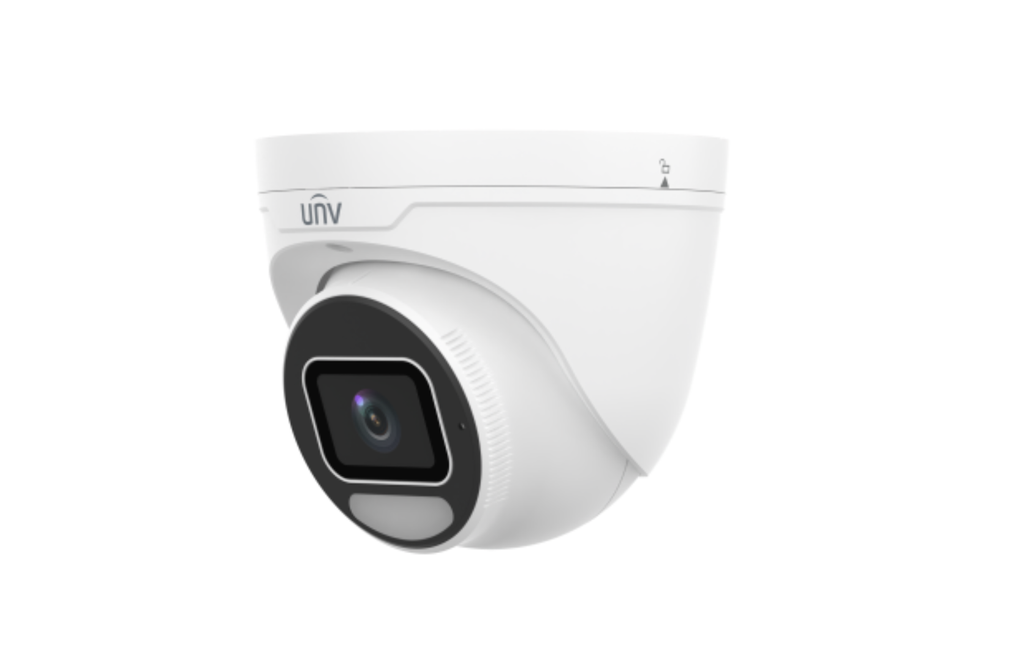

The IPC3638SE-ADF28K-WP-I1 is a flagship 8MP OwlView Plus turret camera featuring an ultra-large 1/1.2" CMOS sensor and F1.0 aperture lens for exceptional full-colour imaging.
Designed for premium commercial and high-risk environments, it combines ColorHunter with Wise-ISP, 130dB WDR, advanced intelligent analytics, and active alarm/audio interfaces to deliver powerful 24/7 full-colour surveillance.
Ideal for warehouses, retail, schools, transport hubs, critical infrastructure, and perimeter protection.
Key Features
• 8MP (3840 × 2160) @ 30fps
• Large 1/1.2" CMOS sensor
• F1.0 fixed lens
• ColorHunter with Wise-ISP (24-hour full colour)
• 130dB True WDR
• Smart intrusion prevention with target classification
• Smart intrusion prevention with color retrieval
• People flow counting & crowd density monitoring
• Auto Scene Match (ASM)
• Warm white light up to 30m
• Alarm I/O (1 in / 1 out)
• Audio I/O (1 in / 1 out) + built-in mic
• MicroSD up to 512GB
• IK10 vandal resistant
• IP67 & NEMA 4X protection
Camera Specifications
Max Resolution: 8MP
Sensor: 1/1.2" CMOS
Minimum Illumination:
• Colour: 0.0003 Lux (F1.0, AGC ON)
Shutter: 1 ~ 1/100000s
WDR: 130dB
S/N Ratio: >56 dB
Adjustment Angle:
• Pan: 0°–360°
• Tilt: 0°–75°
• Rotate: 0°–360°
Lens (2.8mm)
Focal Length: 2.8mm
Iris: F1.0 (Fixed)
Field of View:
• Horizontal: 105.0°
• Vertical: 56.1°
• Diagonal: 121.0°
DORI Distance (2.8mm)
• Detect: 43.4m
• Observe: 17.4m
• Recognize: 8.7m
• Identify: 4.3m
Illumination
Supplemental Light: Warm white light
• Distance: 30m
• Auto / Manual control
Enables full-colour imaging in total darkness.
Video Performance
Main Stream:
• 8MP @ 30fps
• 5.3MP @ 30fps
• 3.6MP @ 30fps
• 1080P @ 30fps
• 720P @ 30fps
Sub Stream:
• 1080P / 720P / D1 / 640×360 / CIF
Third Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Triple Streams Supported
ROI Supported
Up to 8 OSDs
Privacy Mask: Up to 4 areas
Intelligent Analytics
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• Human / motor vehicle / non-motor vehicle classification
• False alarm filtering
Advanced Features:
• Smart intrusion prevention with color retrieval
• Attribute collection (SIP)
• People flow counting
• Crowd density monitoring
• Object removed detection
• Object left behind detection
Audio & Alarm
• Built-in microphone
• Two-way audio supported
• Audio I/O: 1 input / 1 output
• Alarm I/O: 1 input / 1 output
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Integration
• 10/100 Mbps RJ45
• ONVIF (Profile S, G, T, M)
• HTTPS Encryption
• TLS 1.2
• SSH Support
• Up to 32 users (3 levels)
Compatible with EZStation and mobile app.
Power & Physical
Power: DC 12V ±25% / PoE (IEEE 802.3af)
Max Consumption: 6.0W
Material: Metal
Dimensions: Ø129mm × 110mm
Weight: 0.69kg
Operating Temperature: -40°C to 60°C
Protection:
• IP67
• IK10
• NEMA 4X
Surge Protection: 4KV
Reset Button: Supported
