Description

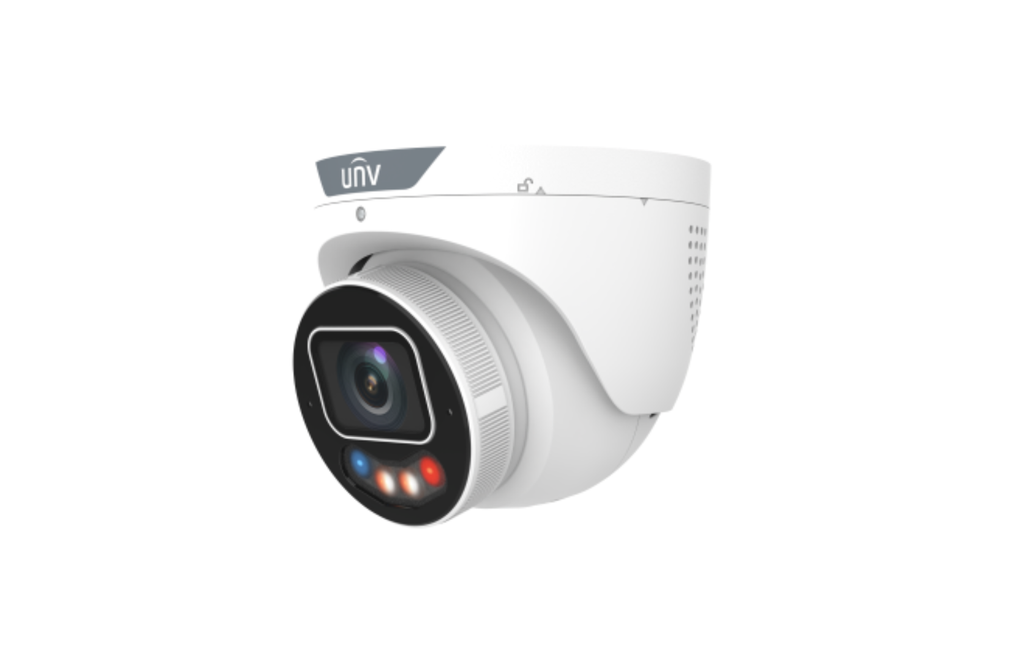

The IPC3636SE-ADF28KMC-WP-I1 is a premium 6MP OwlView Plus Tri-Guard turret camera designed for intelligent, full-colour, active deterrence surveillance.
Featuring a large 1/1.8" sensor with F1.0 aperture, 130dB WDR, dual-light technology (IR + warm light), and built-in dual-mic & speaker, this model delivers 24/7 full-colour imaging with smart intrusion prevention and audio-visual deterrence.
Ideal for high-risk commercial sites, warehouses, car parks, retail, schools, and perimeter protection.
Key Features
• 6MP (3072 × 2048) @ 30fps
• 1/1.8" CMOS sensor with F1.0 aperture
• OwlView Plus with ColorHunter & Wise-ISP
• 130dB True WDR
• Smart intrusion prevention with color retrieval
• Human, vehicle & non-motor vehicle classification
• People counting & crowd density monitoring
• Auto Scene Match (ASM)
• Dual-light (IR + warm white light) up to 30m
• Built-in dual microphone & speaker (two-way audio)
• Alarm I/O (1 in / 1 out)
• MicroSD up to 512GB
• IK10 vandal resistant
• IP67 & NEMA 4X protection
Camera Specifications
Max Resolution: 6MP
Sensor: 1/1.8" CMOS
Minimum Illumination:
• Colour: 0.0005 Lux (F1.0, AGC ON)
Day/Night: IR-cut filter (ICR)
Shutter: 1 ~ 1/100000s
WDR: 130dB
S/N Ratio: >56 dB
Adjustment Angle
• Pan: 0°–360°
• Tilt: 0°–75°
• Rotate: 0°–360°
Lens (2.8mm)
Focal Length: 2.8mm
Iris: F1.0 (Fixed)
Field of View:
• Horizontal: 108.1°
• Vertical: 59.5°
• Diagonal: 130.2°
DORI Distance (2.8mm)
• Detect: 63.0m
• Observe: 25.2m
• Recognize: 12.6m
• Identify: 6.3m
Dual-Light Illumination
Supplemental Light: IR + Warm Light
• IR Distance: 30m
• Warm Light Distance: 30m
• Automatic or Manual control
• 850nm IR wavelength
Provides intelligent switching between invisible IR and full-colour warm light.
Video Performance
Main Stream:
• 6MP @ 30fps
• 5MP @ 30fps
• 4MP @ 30fps
• 1080P @ 30fps
• 720P @ 30fps
Sub Stream:
• 1080P / 720P / D1 / 640×360 / CIF
Third Stream Supported
Bitrate: 128 Kbps – 16 Mbps
Triple Streams Supported
ROI Supported
Up to 8 OSDs
Privacy Mask: Up to 4 areas
Intelligent Analytics
Smart Intrusion Prevention
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering
• Human / Vehicle / Non-motor vehicle classification
Advanced Features
• Smart intrusion prevention with color retrieval
• Attribute collection
• People flow counting
• Crowd density monitoring
• Object removed / Object left behind detection
Audio & Alarm
• Built-in dual-mic
• Built-in speaker
• Two-way audio supported
• Audio I/O: 1 input / 1 output
• Alarm I/O: 1 input / 1 output
Perfect for active deterrence and warning announcements.
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Integration
• 10/100 Mbps RJ45
• ONVIF (Profile S, G, T, M)
• HTTPS Encryption
• TLS 1.2
• SSH Support
• Up to 32 users (3 levels)
Compatible with EZStation and mobile app.
Power & Physical
Power: DC 12V ±25% / PoE (802.3af)
Max Consumption: 6.5W
Material: Metal
Dimensions: Ø128.7mm × 110.3mm
Weight: 1.05kg
Operating Temperature: -40°C to 60°C
Protection:
• IP67
• IK10
• NEMA 4X
Surge Protection: 4KV
Reset Button: Supported
