Description

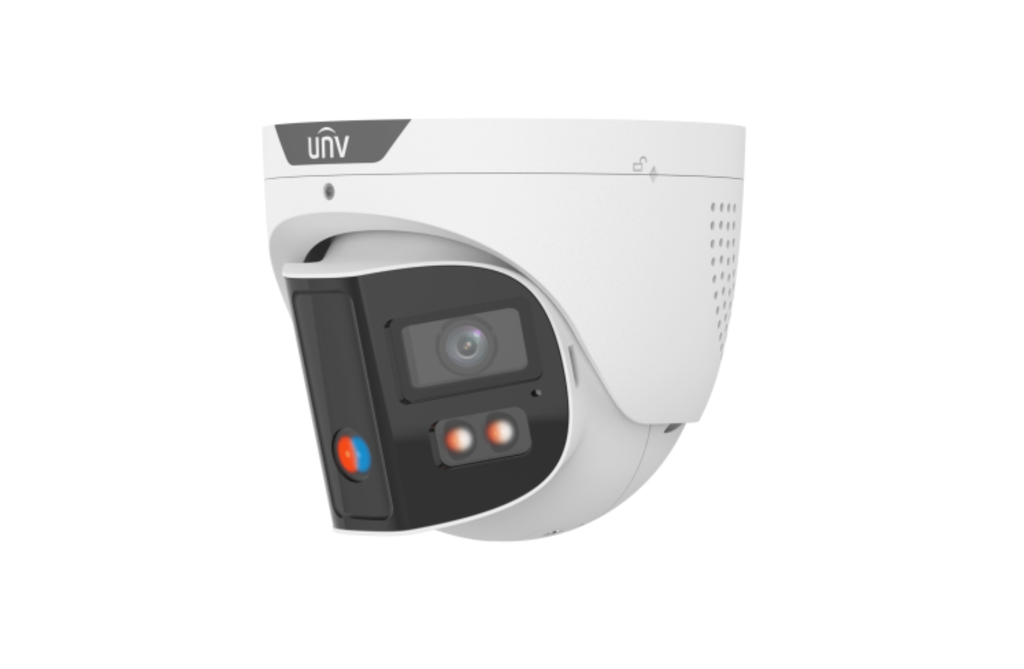

The IPC3K28SE-ADF28KMC-DL-I0 is an 8MP dual-lens panoramic turret camera designed to deliver a seamless 180° horizontal field of view using double-lens splicing technology.
Equipped with ColorHunter full-colour imaging, dual-light illumination, and built-in red/blue warning lights, this model is ideal for wide-area active deterrence surveillance in commercial and high-risk environments.
Perfect for shopfronts, warehouses, building facades, car parks, and perimeter walls where wide coverage is required without blind spots.
Key Features
• 8MP (4096 × 1860) @ 20fps
• 1/2.5" CMOS sensor
• Dual-lens splicing for 180° horizontal view
• F1.0 large aperture lens
• ColorHunter 24/7 full-colour imaging
• Red & blue warning light support
• 130dB True WDR
• Smart intrusion prevention with target classification
• Smart intrusion prevention with color retrieval
• People counting & crowd density monitoring
• Auto Scene Match (ASM)
• Dual-light (IR + warm light) up to 30m
• Built-in dual microphone & speaker
• Alarm I/O (1 in / 1 out)
• Audio I/O (1 in / 1 out)
• MicroSD up to 512GB
• IK10 vandal resistant
• IP67 protection
Camera Specifications
Max Resolution: 8MP
Sensor: 1/2.5" CMOS
Minimum Illumination:
• Colour: 0.002 Lux (F1.0, AGC ON)
• 0 Lux with light
Day/Night: IR-cut filter (ICR)
Shutter: 1 ~ 1/100000s
WDR: 130dB
S/N Ratio: >52 dB
Adjustment Angle:
• Pan: 0°–360°
• Tilt: 0°–75°
• Rotate: 0°–360°
Lens & Field of View
Focal Length: 2.8mm
Iris: F1.0 (Fixed)
Lens Type: Fixed (Dual-lens stitched)
Field of View:
• Horizontal: 180°
• Vertical: 65°
• Diagonal: 180°
Provides complete wide-area monitoring with minimal blind spots.
DORI Distance (2.8mm)
• Detect: 63.1m
• Observe: 25.2m
• Recognize: 12.6m
• Identify: 6.3m
Dual-Light Illumination
Supplemental Light: IR + Warm Light
• IR Distance: 30m
• Warm Light Distance: 30m
• 850nm IR wavelength
• Auto / Manual control
Includes red & blue warning light for visual deterrence.
Video Performance
Main Stream:
• 8MP (4096 × 1860) @ 20fps
Sub Stream:
• 2048 × 936 @ 20fps
Bitrate: 128 Kbps – 16 Mbps
Dual Streams Supported
ROI: Up to 8 areas
OSD: Up to 8
Privacy Mask: Up to 4 areas
Intelligent Analytics
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• False alarm filtering
• Human / motor vehicle / non-motor vehicle classification
Advanced Features:
• Smart intrusion prevention with color retrieval (SIP)
• Attribute collection
• People flow counting
• Crowd density monitoring
Audio & Alarm
• Built-in dual-mic
• Built-in speaker
• Two-way audio supported
• Audio I/O: 1 input / 1 output
• Alarm I/O: 1 input / 1 output
Ideal for warning announcements and active deterrence.
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Integration
• 10/100 Mbps RJ45
• ONVIF (Profile S, G, T, M)
• API / SDK support
• HTTPS Encryption
• TLS 1.2
• SSH Support
• Up to 32 users (3 levels)
Compatible with EZStation and mobile app.
Power & Physical
Power: DC 12V ±25% / PoE (IEEE 802.3af)
Max Consumption: 12.6W
Material: Metal
Dimensions: Ø128.7mm × 109.9mm
Weight: 0.86kg
Operating Temperature: -30°C to 60°C
Protection:
• IP67
• IK10
Surge Protection: 4KV
Reset Button: Supported
