Description

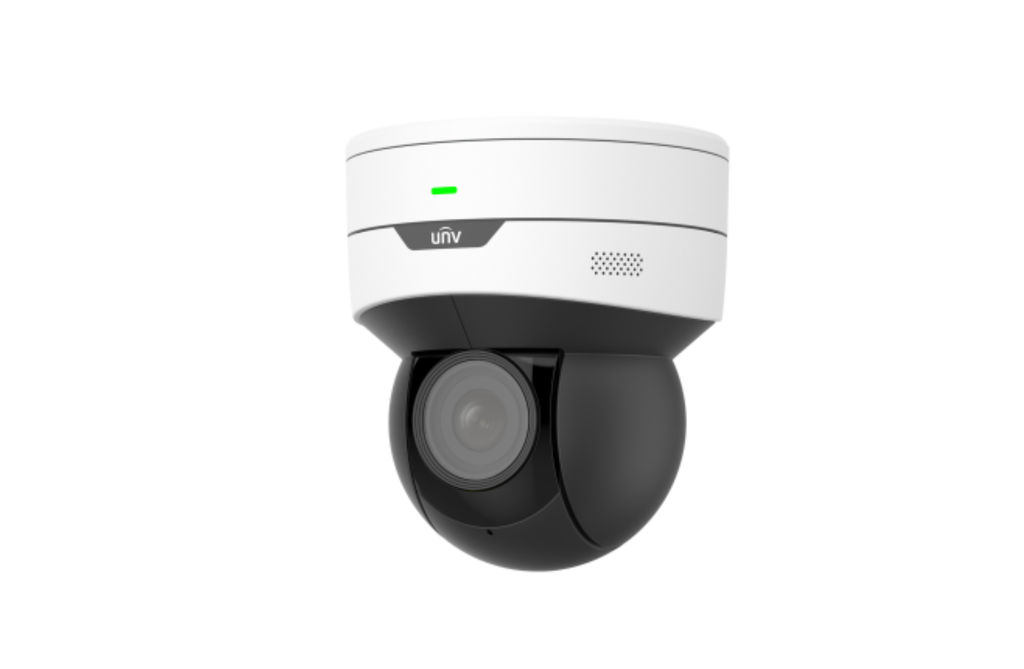

The IPC6215SR-X5PAEW-VG is a compact 5MP mini PTZ camera featuring 5X optical zoom, LightHunter low-light technology, built-in Wi-Fi, and intelligent analytics.
Designed for flexible installations where cabling is limited, this model delivers detailed 16:9 imaging, smooth pan-tilt control, smart intrusion prevention, and two-way audio in a compact housing.
Ideal for retail stores, small warehouses, offices, schools, and residential driveways.
Key Features
• 5MP (2880 × 1620) @ 30fps
• 1/2.7" CMOS sensor
• 5X optical zoom (2.7–13.5mm)
• LightHunter low-light enhancement
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention with false alarm filtering
• Automatic best snapshot selection
• 120dB WDR
• Built-in mic & speaker (two-way audio)
• Wi-Fi support (2.4GHz)
• Alarm I/O: 1/1
• Audio I/O: 1/1
• Built-in DC 12V output
• Smart IR up to 30m
• PoE+ (802.3at) supported
Camera Specifications
Sensor: 1/2.7" CMOS
Minimum Illumination:
• Colour: 0.003 Lux (F1.2, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter (ICR)
Shutter: 1 ~ 1/100000s
WDR: 120dB
S/N Ratio: >56 dB
Lens & Zoom
Focal Length: 2.7–13.5mm
Optical Zoom: 5X
Iris: F1.2
Field of View:
• Horizontal: 104.9° – 30.6°
• Vertical: 55.4° – 17.7°
• Diagonal: 129.0° – 39.8°
DORI Distance
• Detect: 70.9m – 247.5m
• Observe: 28.4m – 99.0m
• Recognize: 14.2m – 49.5m
• Identify: 7.1m – 24.8m
PTZ Performance
• Pan Range: 350°
• Tilt Range: 0°–90°
• Pan Speed: 0.1°/s – 60°/s
• Tilt Speed: 0.1°/s – 50°/s
• Presets: 1024
• 16 preset patrols (up to 64 presets each)
• Home position supported
Video Performance
Main Stream:
• 5MP (2880 × 1620) @ 30fps
Sub Stream:
• 720P @ 30fps
Third Stream:
• D1 @ 30fps
Bitrate: 128 Kbps – 16 Mbps
Triple Streams Supported
ROI Supported
Up to 8 OSDs
Privacy Mask: 24 areas (up to 4 per scene)
Intelligent Analytics
Smart Intrusion Prevention:
• Cross line detection
• Intrusion detection
• Enter area detection
• Leave area detection
• Human / vehicle / non-motor vehicle classification
Exception Detection:
• Object removed
• Object left behind
• Scene change
• Defocus detection
IR Illumination
• IR Distance: 30m
• 850nm wavelength
• Auto / Manual control
Audio & Alarm
• Built-in microphone
• Built-in speaker
• Two-way audio supported
• Audio I/O: 1 input / 1 output
• Alarm I/O: 1 input / 1 output
• RS485 supported
Storage
• MicroSD up to 512GB
• ANR
• NAS (NFS)
Network & Wi-Fi
• 10/100 Mbps RJ45
• Wi-Fi: IEEE 802.11 b/g/n (2.4GHz)
• WPA/WPA2 security
• ONVIF (Profile S, G, T)
• TLS 1.3 support
• Up to 32 users (3 levels)
Compatible with EZStation, UNV-Link & UNV-Link Pro.
Power & Physical
Power: DC 12V (±25%) / PoE+ (802.3at)
Max Consumption: 18W
Material: Plastic
Dimensions: Ø129mm × 143.6mm
Weight: 780g
Operating Temperature: -10°C to 50°C
Surge Protection: 4KV
Reset Button: Supported
