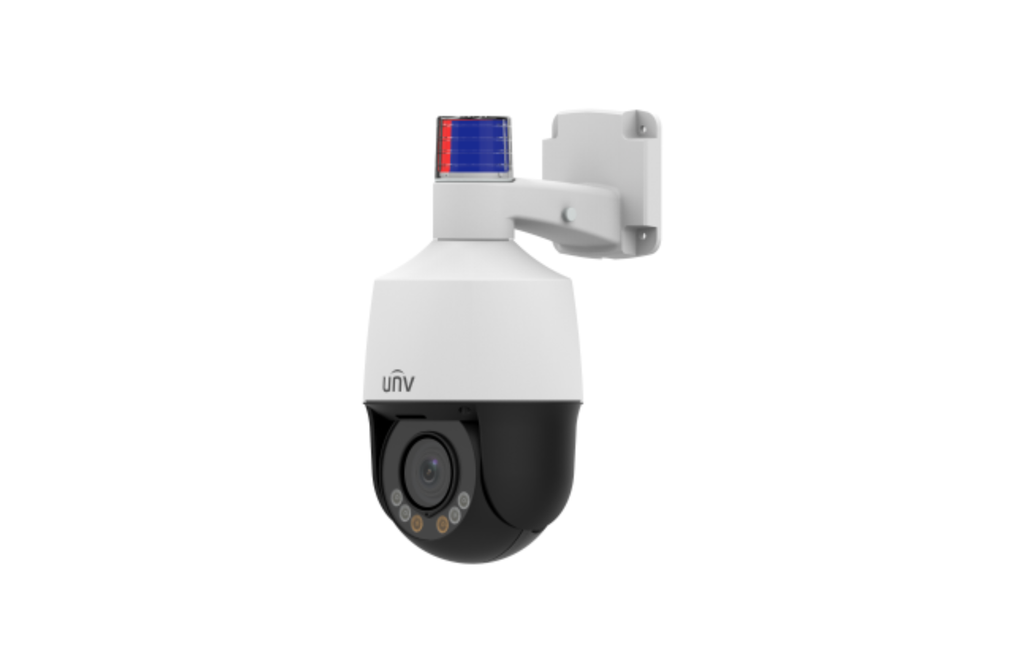

2MP LightHunter PTZ dome camera with active deterrence features including built-in microphone, speaker, and alarm light. Designed for clear low-light performance, perimeter protection, and medium-range monitoring.
Datasheet
Camera
Sensor: 1/2.8" 2MP Progressive Scan CMOS
Lens: 2.8 ~ 12 mm motorized zoom, auto focus
Angle of View (H): 95.7° ~ 32.5°
Minimum Illumination:
• Colour: 0.001 lux (F1.6, AGC ON)
• 0 lux with IR
WDR: 120 dB Optical WDR
Day/Night: IR-cut filter (ICR) auto switch
DNR: 2D / 3D
IR Range: Up to 50 m
Warm Light Range: Up to 10 m
Wavelength: 850 nm
DORI Distance
2.8 mm: Detect 43.4 m | Observe 17.4 m | Recognize 8.7 m | Identify 4.3 m
12 mm: Detect 186.2 m | Observe 74.5 m | Recognize 37.2 m | Identify 18.6 m
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Main Stream: 1920 × 1080 @ 30 fps
Sub Stream: 1280 × 720 @ 30 fps
Third Stream: CIF @ 30 fps
Bit Rate: 128 Kbps ~ 16 Mbps
Up to 8 OSD overlays
Privacy Mask: Up to 8 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas
HLC / BLC supported
Dewarping supported
Audio and Active Deterrence
Built-in microphone
Built-in speaker
Audio Compression: G.711
Alarm Light supported
Two-way audio supported
PTZ Performance
Pan Range: 345°
Tilt Range: 90°
Pan Speed: 0.1°/s ~ 50°/s
Tilt Speed: 0.1°/s ~ 40°/s
Presets: 256
Patrol Modes: Preset patrol, Route patrol
Network
1 × RJ45 10/100 Mbps
ONVIF Profile S, Profile G, Profile T
Protocols: IPv4, TCP, UDP, DHCP, RTSP, HTTPS, SNMP, 802.1x, SSL
Edge Storage: Micro SD up to 128GB
Network Storage: ANR, NAS (NFS)
Clients: EZStation, EZView, EZLive
Power
DC 12V ±25%
PoE (IEEE802.3at)
Maximum Power Consumption: 16W
General
Dimensions: 133 mm × 269.4 mm
Net Weight: 0.87 kg
Material: Metal + Plastic
Operating Temperature: –20°C to +60°C
Ingress Protection: IP66
Surge Protection: 4KV
Reset Button: Supported
