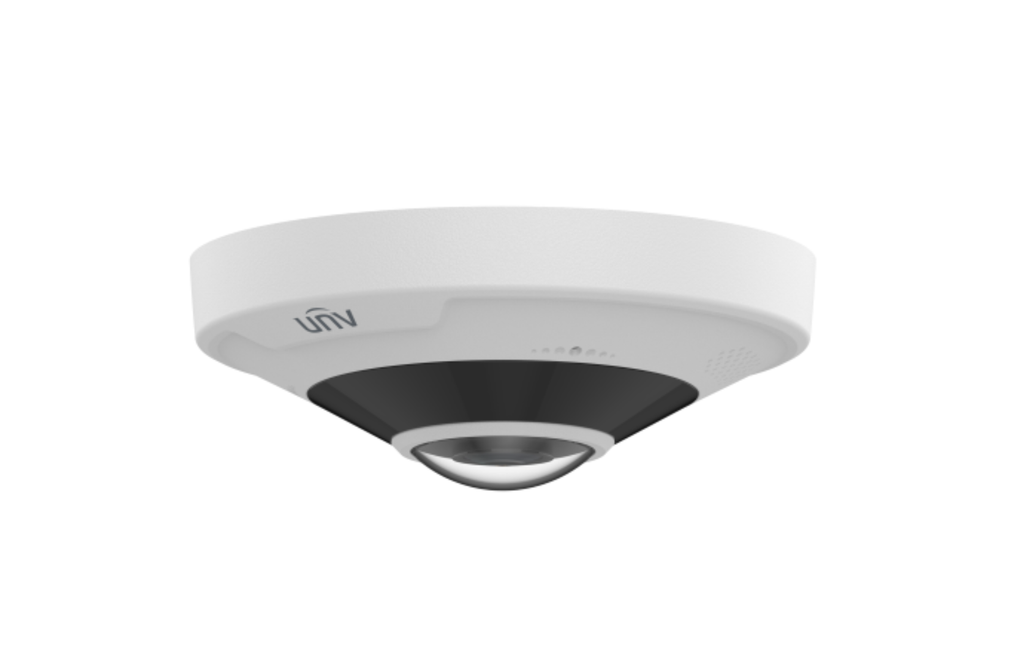

12MP fisheye network camera delivering full 360° panoramic coverage. Designed for wide-area monitoring such as retail, warehouses, offices and public spaces with interactive multi-view display and heatmap support.
Datasheet
Camera
Sensor: 1/1.7" CMOS
Maximum Resolution: 4000 × 3000
Minimum Illumination:
• Colour: 0.03 Lux (F2.0, AGC ON)
• 0 Lux with IR
Day/Night: IR-cut filter (ICR) auto switch
Shutter: 1 ~ 1/100000 s
WDR: DWDR
S/N Ratio: >52 dB
Lens
Focal Length: 1.8 mm
Iris: F2.0 (Fixed)
Field of View (H/V/D): 180°
DORI (1.8 mm)
Detect: 43.8 m
Observe: 17.5 m
Recognize: 8.8 m
Identify: 4.4 m
Illumination
IR Distance: Up to 15 m
Supplemental Light: IR
Wavelength: 850 nm
IR Control: Auto / Manual
Video
Compression: Ultra 265, H.265, H.264, MJPEG
Triple stream
Main Stream:
• 12MP (4000 × 3000) @ 20 fps
• 3000 × 3000 @ 20 fps
• 2560 × 2560 @ 25 fps
Panorama Modes:
• 3000 × 2000 @ 20/25 fps
• 3000 × 1500 @ 20/25 fps
PTZ View:
• 1920 × 1080 @ 20/25 fps
Bitrate: 128 Kbps to 16 Mbps
U-code supported
Up to 8 OSD overlays
Privacy Mask: Up to 4 areas
ROI supported
Live View Display Modes
Hardware Decoding
Ceiling / Table Mount: fisheye view, fisheye + 4PTZ, horizontal panorama, vertical panorama
Wall Mount: fisheye view, fisheye + 4PTZ, panorama view
Software Decoding
Supports 360° panorama + PTZ combinations (up to 8 PTZ views depending on mount type)
Intelligent Functions
Smart intrusion prevention
• Cross line detection
• Intrusion detection
Heatmap (requires management platform)
Basic detection: motion detection, tampering alarm, audio detection
Audio
Built-in dual microphone
Built-in speaker
Two-way audio supported
Audio Compression: G.711U / G.711A
Sampling Rate: 8 kHz
Storage
MicroSD up to 512 GB
ANR supported
NAS (NFS) supported
Network
1 × RJ45 10/100 Mbps
ONVIF Profile S, G, T, M
Up to 32 users (3 levels)
HTTPS encryption
TLS 1.2
RTSP authentication
Protocols: IPv4, IPv6, TCP, UDP, RTSP, HTTPS, SNMP, 802.1x
Interface
Audio I/O: 1/1
Alarm I/O: 2/1
RS485: 1 port
Video Output: 1 BNC
Power
DC 12V ±25%
PoE (IEEE 802.3af)
Maximum Power Consumption: 12W
General
Dimensions: Ø149 mm × 55 mm
Weight: 0.524 kg
Operating Temperature: –30°C to +60°C
Ingress Protection: IP67
Vandal Resistance: IK10
Surge Protection: 4KV
Reset Button: Supported
