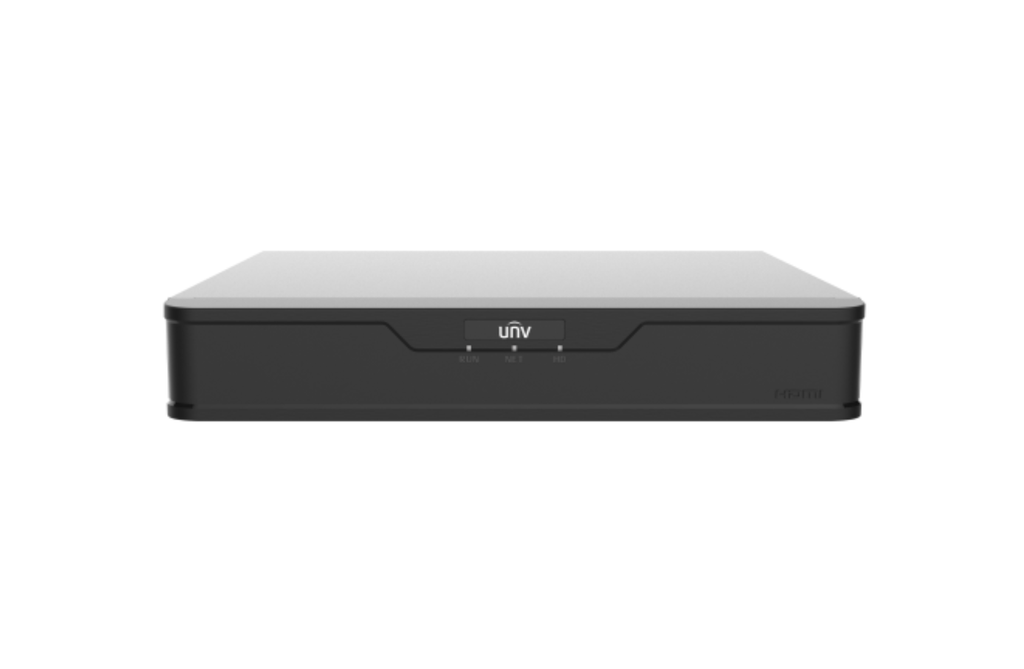

The NVR301-08X-P8 is an 8-channel PoE NVR supporting up to 8MP recording. It includes 8 built-in PoE ports, 1 SATA HDD bay (up to 10TB), and HDMI/VGA simultaneous output.
Datasheet
Video / Audio Input
IP Video Input: 8-channel
Two-way Audio Input: 1-channel, RCA
Incoming Bandwidth: 64 Mbps
Outgoing Bandwidth: 64 Mbps
Remote Users: Up to 128
Supported Protocols:
P2P, UPnP, NTP, DHCP, PPPoE
ONVIF Profile S / G / T supported.
Video Output
HDMI Output:
3840×2160 @30Hz
1920×1080p @60/50Hz
1600×1200 @60Hz
1280×1024 @60Hz
1280×720 @60Hz
1024×768 @60Hz
VGA Output:
1920×1080p @60/50Hz
1600×1200 @60Hz
1280×1024 @60Hz
1280×720 @60Hz
1024×768 @60Hz
HDMI and VGA simultaneous output supported.
Recording
Compression: Ultra 265 / H.265 / H.264
Recording Resolution:
4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Synchronous Playback: 8-channel
Corridor Mode Screen: 3 / 4 / 5 / 7 / 9
Decoding Capability
Live View / Playback Supports:
4K / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Decoding Capacity:
2 × 4K @30
3 × 5MP @30
4 × 4MP @30
5 × 3MP @30
8 × 1080p @30
16 × 720p @30
Storage
SATA Interface: 1
Maximum Capacity: Up to 10TB per disk
Smart Functions
VCA Detection:
Face detection
Intrusion detection
Cross line detection
Audio detection
Defocus detection
Scene change detection
Auto tracking
VCA Search:
Face search
Behavior search
Statistical Analysis:
People counting
External Interface
Network Interface:
1 × RJ45 10/100 Mbps
USB Interface (Rear Panel):
1 × USB2.0
1 × USB3.0
PoE Interface:
8 independent 100 Mbps PoE ports
PoE Standard:
IEEE 802.3af
IEEE 802.3at
Maximum PoE Power:
30W per port
108W total (13.5W per port typical allocation)
General
Power Supply: 52V DC
Power Consumption: ≤ 8W (without HDD)
Operating Temperature: -10°C to +55°C
Humidity: ≤ 90% (non-condensing)
Dimensions: 260 × 240 × 47 mm
Weight (without HDD): 1 kg
