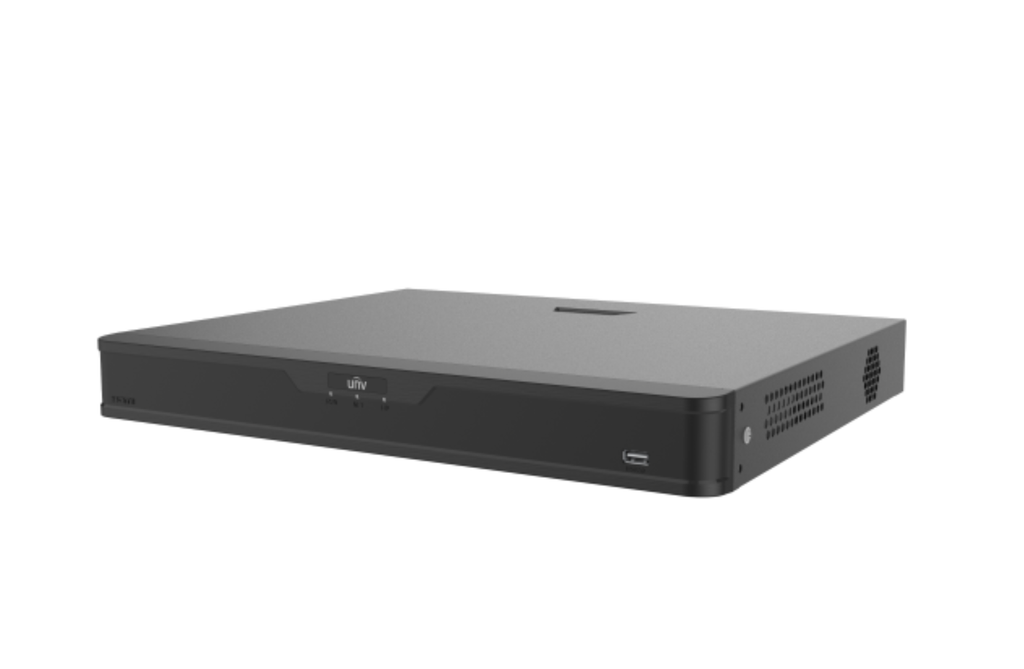

The NVR302-16E2-P16 is a 16-channel PoE NVR supporting up to 12MP recording. It includes 16 independent PoE ports, 2 SATA HDD bays (up to 10TB each), 4K HDMI output, and advanced smart analytics support.
Datasheet
Video / Audio Input
IP Video Input: 16-channel
Two-way Audio Input: 1-channel, RCA
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 320 Mbps
Remote Users: Up to 128
Supported Protocols:
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS
ONVIF Profile S / G / T supported
RTSP supported
Video Output
HDMI Output:
4K (3840×2160) @30Hz
1920×1080p @60/50Hz
1280×1024 @60Hz
1280×720 @60Hz
1024×768 @60Hz
VGA Output:
1920×1080p @60/50Hz
1600×1200 @60Hz
1280×1024 @60Hz
1280×720 @60Hz
1024×768 @60Hz
HDMI and VGA independent outputs supported.
Recording
Compression: Ultra H.265 / H.265 / H.264
Recording Resolution:
12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Synchronous Playback: 16-channel
Live View Display:
1 / 4 / 6 / 8 / 9 / 16
Corridor Mode Screen:
3 / 4 / 5 / 7 / 9 / 10 / 12 / 16
Snapshot:
16-channel snapshot up to 1080p
Decoding Capability
Live View / Playback Supports:
12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Decoding Capacity:
1 × 12MP @30
2 × 4K @30
5 × 4MP @30
10 × 1080p @30
16 × 720p @30
Storage
SATA Interfaces: 2
Maximum Capacity: Up to 10TB per HDD
Disk Group: Supported
ANR (Automatic Network Replenishment) supported.
Smart Functions
VCA Detection by Camera:
Intrusion Detection
Cross Line Detection
Enter Area
Leave Area
Defocus Detection
Scene Change Detection
Object Left Behind
Object Removed
Auto Tracking
VCA Search:
Behavior Search
Vehicle Search
People Counting:
People Flow Counting
Crowd Density Monitoring
Smart Intrusion Prevention (SIP):
Vehicle Detection supported
Total 8-channel SIP support
Alarm & Events
General Alarm:
Motion
Tampering
Human Body Detection
Video Loss
Input Alarm
Audio Detection
Alert Alarm:
IP Conflict
Network Disconnected
Disk Offline
Disk Abnormal
Illegal Access
Hard Disk Space Low
Hard Disk Full
Recording/Snapshot Abnormal
External Interface
Network Interface:
1 × RJ45 10/100/1000 Mbps
USB Interface:
Front: 1 × USB2.0
Rear: 1 × USB3.0
RS485: 1
Alarm Input: 8-channel
Alarm Output: 2-channel
PoE
PoE Ports:
16 × RJ-45 10/100 Mbps
PoE Standard:
IEEE 802.3af / IEEE 802.3at
Maximum Power:
30W per port
240W total
General
Power Supply: 100–240V AC
Power Consumption: ≤ 15W (without HDD)
Operating Temperature: -10°C to +55°C
Humidity: ≤ 90% (non-condensing)
Dimensions: 380 × 315 × 53 mm
Weight (without HDD): ≤ 2.6 kg
Certification: CE, FCC, UL, RoHS, WEEE
