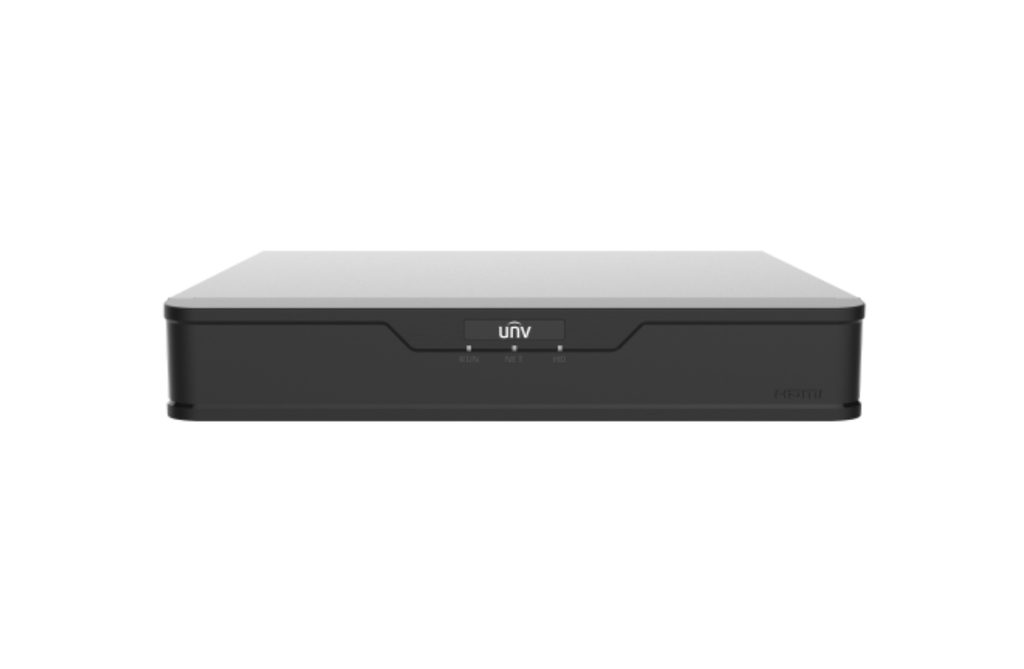

The NVR501-04B-P4 is a 4-channel PoE NVR with built-in PoE ports for direct camera connection. It supports up to 16MP recording and 1 SATA hard drive up to 8TB.
Datasheet
Video Input
IP Video Input: 4-channel (PoE)
Incoming Bandwidth: 80 Mbps
Outgoing Bandwidth: 64 Mbps
Remote Users: Up to 128
Supported Protocols:
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
ONVIF Profile S / G / T
RTSP
Video Output
HDMI Output:
4K (3840×2160)@30Hz
1920×1080p@60/50Hz
1600×1200@60Hz
1280×1024@60Hz
1280×720@60Hz
1024×768@60Hz
VGA Output:
1920×1080p@60/50Hz
1600×1200@60Hz
1280×1024@60Hz
1280×720@60Hz
1024×768@60Hz
HDMI and VGA simultaneous output supported.
Recording
Compression: Ultra 265 / H.265 / H.264
Recording Resolution:
16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
Synchronous Playback: 4-channel
Live View Display: 1 / 4
Snapshot: 4-channel snapshot up to D1
Decoding Capability (Ultra 265 / H.265 example):
2 × 16MP@30
4 × 4K@30
6 × 5MP@30
8 × 4MP@30
10 × 3MP@30
16 × 1080P@30
Audio
Audio Input: 1-channel, RCA
Audio Output: 1-channel, RCA
Two-way Audio: Supported
Audio Compression: G.711A / G.711U
Storage
SATA Interface: 1
Maximum Capacity: Up to 8TB
ANR (Automatic Network Replenishment) supported.
Smart Functions (via Camera)
Intrusion Detection
Cross Line Detection
Enter Area / Leave Area
Defocus Detection
Scene Change Detection
Object Left Behind
Object Removed
Auto Tracking
Ultra Motion Detection (UMD)
Smart Search:
Motor Vehicle Search
Non-Motor Vehicle Search
Human Body Search
People Counting Report
External Interface
Network: 1 × RJ-45 10/100M
PoE Ports: 4
USB: 1 × USB2.0 (rear), 1 × USB3.0 (rear)
Alarm In/Out: Not supported
RS232 / RS485: Not supported
General
Power Supply: 12V DC
Power Consumption: ≤ 6W (without HDD)
Operating Temperature: -10°C to +55°C
Humidity: ≤ 90% (non-condensing)
Dimensions: 260 × 222 × 47 mm
Weight (without HDD): ≤ 0.98 kg
