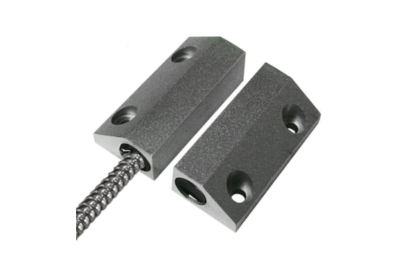

X2 Reed Switch
Type: Mini Heavy Duty Metal Reed Switch
Mounting: Surface Mount
Gap: 30mm
Description: The X2-REED-301 is a mini heavy-duty metal reed switch supplied with 480mm of armoured cable. It is used to detect the open/closed state of doors or windows and is ideal for fire doors, roof hatches, or anywhere requiring the robustness of a smaller-sized heavy-duty reed switch.
Certifications: CCC / CE / FCC / RoHS
Specifications:
-
Contact Type: NC
-
Max. Switching Voltage: 100V DC/AC
-
Max. Switching Current: 0.5A
-
Operating Load: 10W
-
Working Temperature: -20 to 80°C
-
Working Life: >100,000 times
-
Connection Type: 480mm armoured cable
-
Material: Zinc alloy
-
Colour: Silver
